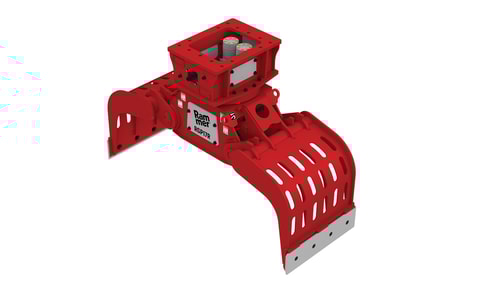

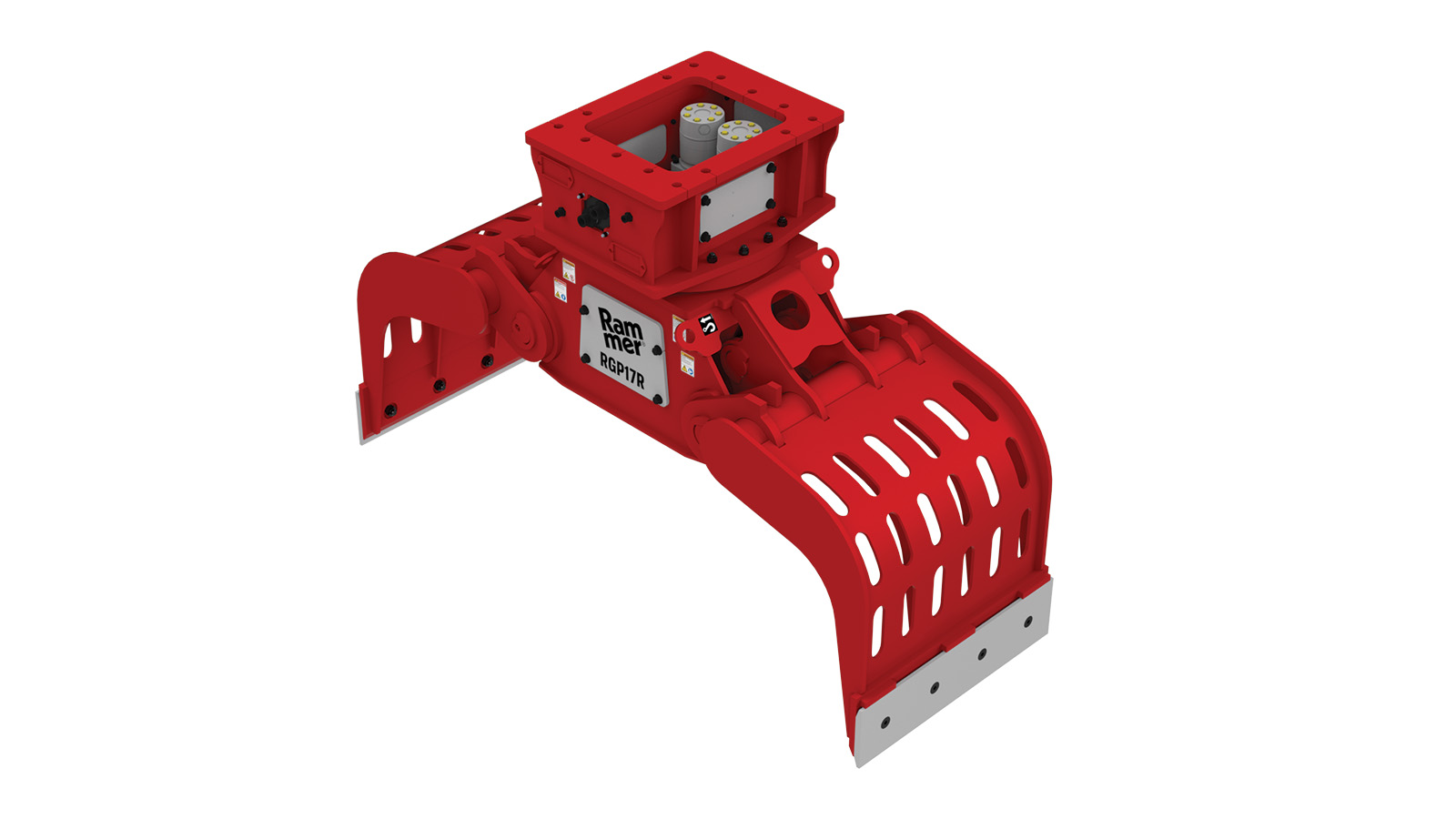

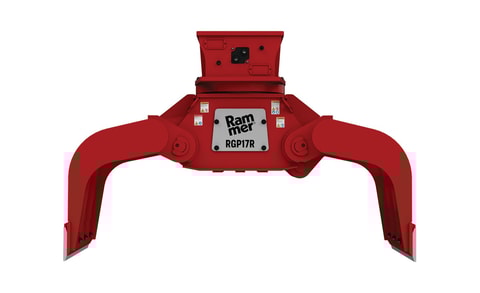

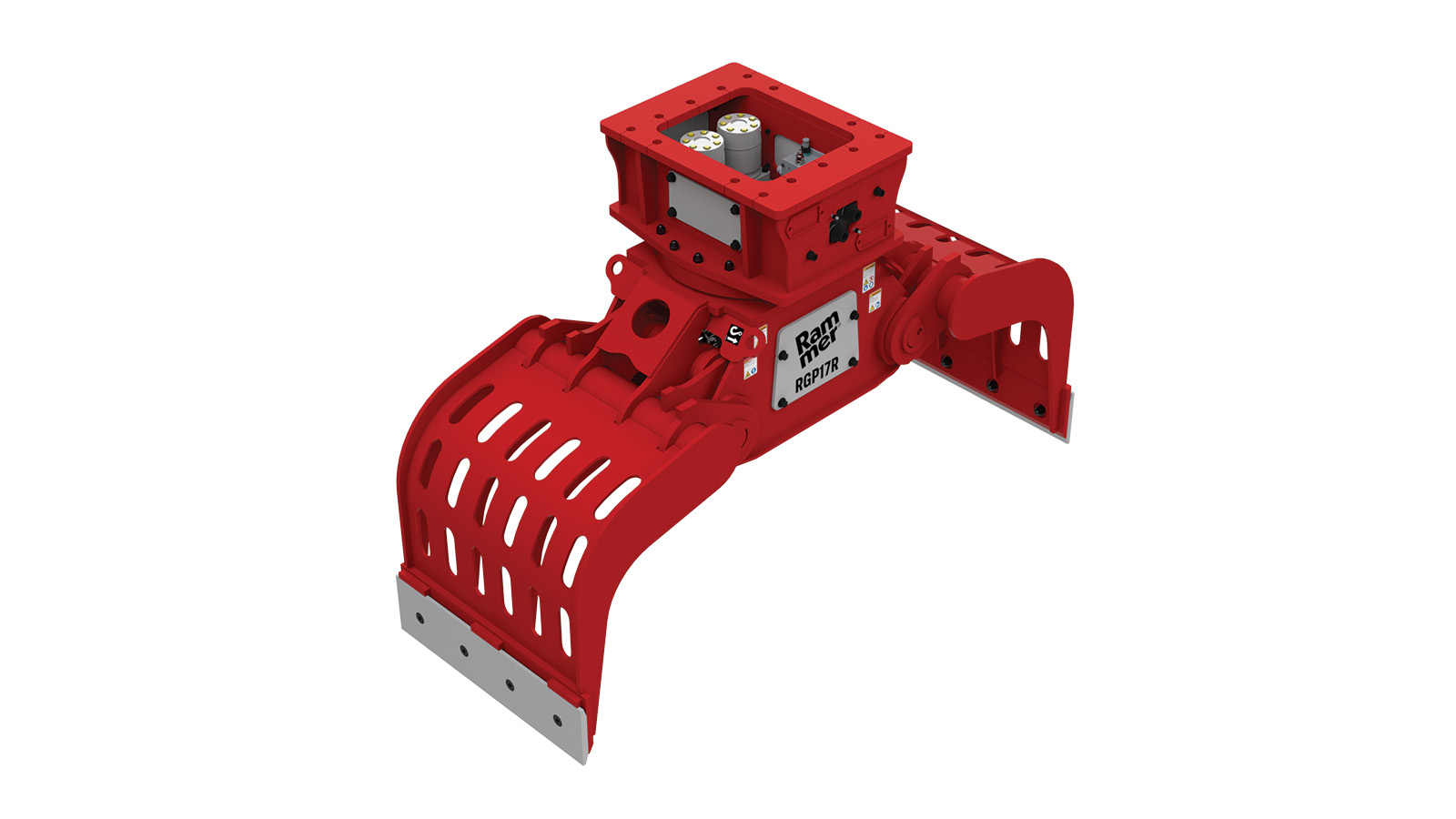

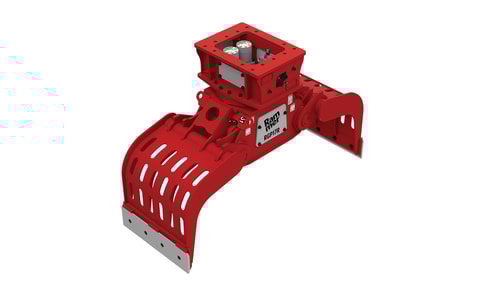

RGP17R

Applications: Primary demolition
Secondary demolition
Recycling
Landscaping
Rental
Min. working weight, flange mounted *1: 1,180 kg (2,600 lb)
Carrier weight, range *2: 14 - 18 t (30,800 - 39,600 lb)

}

Increased capacity for demanding recycling work

The RGP17R is built for 14–18 ton (30,800–39,600 lb) excavators, delivering strong and consistent gripping performance. With an 2,060 mm (81.1 in) opening, it allows efficient sorting and handling of bulky demolition materials.

Product Specifications

Min. working weight, flange mounted *1: 1,180 kg (2,600 lb)
Weight: 1,066 kg (2,350 lb)
Max. jaw opening: 2,060 mm (81 in)
Jaw width: 800 mm (31 in)
Operating pressure: 300 bar (4,351 psi)
Oil flow range: 80 - 100 l/min (21 - 26 gal/min)
Rotation: 360 °
Max pressure for hydraulic rotation: 120 bar (1,740 psi)
Oil flow for hydraulic rotation: 30 l/min (8 gal/min)
Carrier weight, range *2: 14 - 18 t (30,800 - 39,600 lb) ^*
Features: Hardened pins and bushings

Min. working weight, flange mounted *1: 1,180 kg (2,600 lb)
Weight: 1,066 kg (2,350 lb)
Max. jaw opening: 2,060 mm (81 in)
Jaw width: 800 mm (31 in)
Operating pressure: 300 bar (4,351 psi)
Oil flow range: 80 - 100 l/min (21 - 26 gal/min)
Rotation: 360 °
Max pressure for hydraulic rotation: 120 bar (1,740 psi)
Oil flow for hydraulic rotation: 30 l/min (8 gal/min)
Carrier weight, range *2: 14 - 18 t (30,800 - 39,600 lb) ^*
Features: Hardened pins and bushings

^* Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

^* Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Features & Applications

Features
- Hardox steel construction
  High-strength construction provides durability for recycling and material handling applications.
- Hydraulic rotation
  Enables accurate positioning and efficient handling of demolition debris.
- Single cylinder design
  Simple, reliable design delivers strong gripping force with reduced maintenance needs.
- Interchangeable blades
  Blades can be replaced or adjusted in the field to minimize downtime and maintain performance.
- Mechanical blade beating
  Improves material separation and handling efficiency during recycling operations.
- Rotation control valve
  Ensures smooth, precise movements for improved operator control.
- Pressure relief valve
  Protects the hydraulic system from pressure spikes, increasing reliability and component life.
- Hardened pins and bushings
  Designed to withstand high-cycle handling and heavy loads.
- Multiple claw options
  A variety of claw configurations allow the grapple to be tailored to specific material handling needs.
Applications
- Primary demolition
  Demolition of standing buildings and structures.
- Secondary demolition
  Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
- Recycling
  Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
- Landscaping
  Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar.
- Rental
  Rental includes most applications
