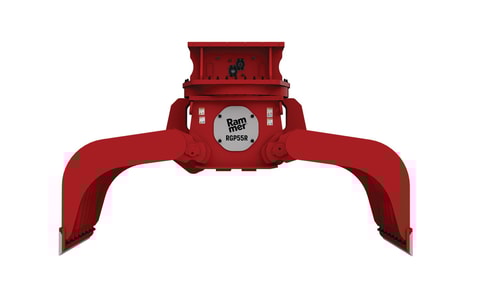

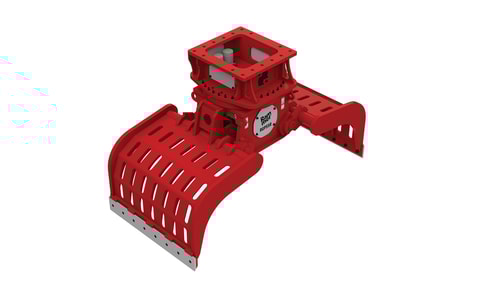

RGP55R

Applications: Primary demolition
Secondary demolition
Recycling
Landscaping
Rental
Min. working weight, flange mounted *1: 4,100 kg (9,040 lb)
Carrier weight, range *2: 45 - 65 t (99,200 - 143,300 lb)

}

Maximum capacity grapple for large-scale operations

Built for 45–65 ton (99,200–143,300 lb) carriers, the RGP55R offers exceptional strength for large-scale demolition and recycling work. Featuring a 3,000 mm (118 in) opening, it enables efficient handling of oversized debris and high-volume material flows.

Product Specifications

Min. working weight, flange mounted *1: 4,100 kg (9,040 lb)
Weight: 3,740 kg (8,245 lb)
Max. jaw opening: 3,000 mm (118 in)
Jaw width: 1,050 mm (41 in)
Operating pressure: 300 bar (4,351 psi)
Oil flow range: 120 - 140 l/min (31 - 37 gal/min)
Rotation: 360 °
Max pressure for hydraulic rotation: 120 bar (1,740 psi)
Oil flow for hydraulic rotation: 15 l/min (5 gal/min)
Carrier weight, range *2: 45 - 65 t (99,200 - 143,300 lb) ^*
Features: Hardened pins and bushings

Min. working weight, flange mounted *1: 4,100 kg (9,040 lb)
Weight: 3,740 kg (8,245 lb)
Max. jaw opening: 3,000 mm (118 in)
Jaw width: 1,050 mm (41 in)
Operating pressure: 300 bar (4,351 psi)
Oil flow range: 120 - 140 l/min (31 - 37 gal/min)
Rotation: 360 °
Max pressure for hydraulic rotation: 120 bar (1,740 psi)
Oil flow for hydraulic rotation: 15 l/min (5 gal/min)
Carrier weight, range *2: 45 - 65 t (99,200 - 143,300 lb) ^*
Features: Hardened pins and bushings

^* Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

^* Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Features & Applications

Features
- Hardox steel construction
  High-strength construction provides durability for recycling and material handling applications.
- Hydraulic rotation
  Enables accurate positioning and efficient handling of demolition debris.
- Single cylinder design
  Simple, reliable design delivers strong gripping force with reduced maintenance needs.
- Interchangeable blades
  Blades can be replaced or adjusted in the field to minimize downtime and maintain performance.
- Mechanical blade beating
  Improves material separation and handling efficiency during recycling operations.
- Rotation control valve
  Ensures smooth, precise movements for improved operator control.
- Pressure relief valve
  Protects the hydraulic system from pressure spikes, increasing reliability and component life.
- Hardened pins and bushings
  Designed to withstand high-cycle handling and heavy loads.
- Double hydraulic motor
  Provides strong, consistent rotation power (RGP40R–RGP55R models).
- Multiple claw options
  A variety of claw configurations allow the grapple to be tailored to specific material handling needs.
Applications
- Primary demolition
  Demolition of standing buildings and structures.
- Secondary demolition
  Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
- Recycling
  Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
- Landscaping
  Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar.
- Rental
  Rental includes most applications
