Ho-Pac Compactor Drivers

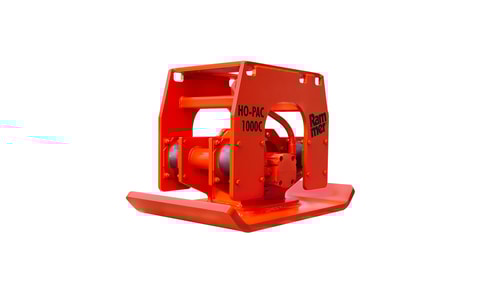

Ho-Pac 1000C
- Min. working weight, flange mounted *1
- 1,120 kg
The 1120lbs (508kg) Ho-Pac 1000C is ideal for trench, slope and excavation compaction. Compatible with carriers in the 9,000 to 30,000 ton range.
The 1000C Ho-Pac attachment is designed for use in small to medium rubber-tired loader and backhoes. Featuring Four Function valve that controls flow, pressure, regenerations and oil flow direction, Grease filled sealed bearings providing maintenance free lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force. Manufactured in the Ohio.
Product Specifications
- Mounting bracket type
- BR/SR
- Min. working weight, flange mounted *1
- 1,120 kg 1)
- Height
- 648 mm (26 in)
- Carrier weight, range *2
- 6 - 14 t (14,000 - 30,000 lb) 2)
- Impulse force
- 8,000 kg
- Mounting bracket type
- BR/SR
- Min. working weight, flange mounted *1
- 1,120 kg 1)
- Height
- 648 mm (26 in)
- Carrier weight, range *2
- 6 - 14 t (14,000 - 30,000 lb) 2)
- Impulse force
- 8,000 kg
- Operating frequency
- 2,000 rpm
- Hydraulic flow options
- 12/18/21 gal/min
- Compaction plate dimensions
- 24 x 37 in
- Miniexcavator, tractor backhoe weight, Range *2
- 4 - 11 t (9,000 - 30,000 lb)
- Width
- 1,829 mm (72 ) in
-
1) Includes average mounting bracket and standard wear parts
-
2) Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
