Ho-Pac 400B
Request a quote
Ho-Pac Compactor Drivers
Ho-Pac 400B
- Min. working weight, flange mounted *1
- 500 kg

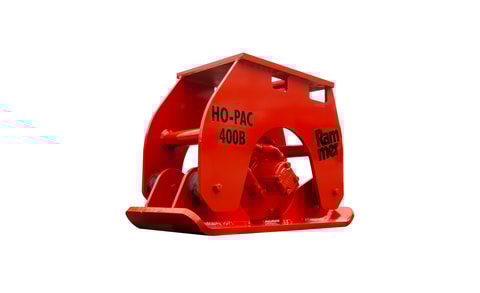

The 500 lbs (227kg) Ho-Pac 400B is ideal for trench, slope and excavation compaction.
Compatible with carriers in the 3,000 to 12,000 lbs, the attachment is designed for use in mini-excavators, skid-steers, rubber-tired backhoes and trenchers with a backhoe attachment.The Ho-Pac 400B features Four Function Valve that controls flow, pressure, regeneration and oil flow direction, Grease filled sealed bearings providing maintenance free lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force. Manufactured in Ohio.
Product Specifications
- Mounting bracket type
- IN1/IN2/XR
- Min. working weight, flange mounted *1
- 500 kg 1)
- Height
- 21 mm
- Carrier weight, range *2
- 2 - 5 t (3,000 - 12,000 lb) 2)
- Impulse force
- 4,000 kg
- Mounting bracket type
- IN1/IN2/XR
- Min. working weight, flange mounted *1
- 500 kg 1)
- Height
- 21 mm
- Carrier weight, range *2
- 2 - 5 t (3,000 - 12,000 lb) 2)
- Impulse force
- 4,000 kg
- Operating frequency
- 2,000 rpm
- Hydraulic flow options
- 6/9/14/18 gal/min
- Compaction plate dimensions
- 13 x 31 in
-
1) Includes average mounting bracket and standard wear parts
-
2) Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
