Ho-Pac 700B
Request a quote
Ho-Pac Compactor Drivers

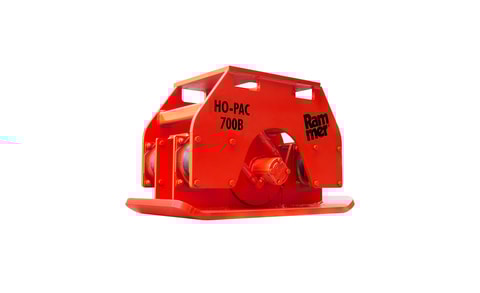

Ho-Pac 700B
- Min. working weight, flange mounted *1
- 750 kg
The 750lbs (340kg) Ho-Pac 700B is ideal for trench, slope and excavation compaction.
Compatible with carriers in the 8,000 to 20,000 ton range, the attachment is designed for use in mini-excavators, skid-steers, rubber-tired backhoes and trenchers with a backhoe attachment.The Ho-Pac 700B features Four Function Valve that controls flow, pressure, regenerations and oil flow direction, Grease filled sealed bearings providing maintenance free lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force. Manufactured in Ohio.
Product Specifications
- Mounting bracket type
- XR/BR
- Min. working weight, flange mounted *1
- 750 kg 1)
- Height
- 546 mm (22 in)
- Carrier weight, range *2
- 4 - 9 t (8,000 - 20,000 lb) 2)
- Impulse force
- 6,400 kg
- Mounting bracket type
- XR/BR
- Min. working weight, flange mounted *1
- 750 kg 1)
- Height
- 546 mm (22 in)
- Carrier weight, range *2
- 4 - 9 t (8,000 - 20,000 lb) 2)
- Impulse force
- 6,400 kg
- Operating frequency
- 2,000 rpm
- Hydraulic flow options
- 6/9/14/18 gal/min
- Compaction plate dimensions
- 18 x 35 in
-
1) Includes average mounting bracket and standard wear parts
-
2) Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
