777E

Applications: Primary demolition
Trenching
Secondary demolition
Cutting of asphalt or frozen ground
Landscaping
Ground Compacting
Rental
Min. working weight, flange mounted *1: 390 kg (860 lb)
Tool diameter: 80 mm (3 in)

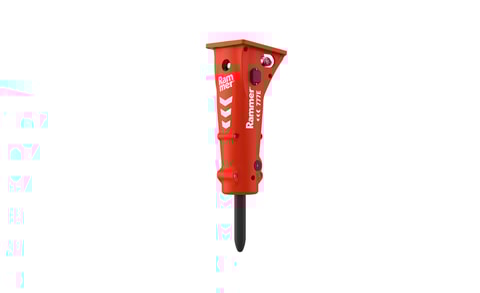

Reliable and versatile Rammer 777E is designed for optimum carrier compatibility in the 2.6 to 9.5 ton range.

The Rammer 777E provides dependable performance in tougher ground conditions, including rock excavation, concrete removal, and trenching through hard material. Designed for mid-size excavators, it offers a strong balance of impact energy, reliability, and operator control. Its robust construction reduces wear and extends service intervals, helping crews stay focused on production rather than repairs — a reliable tool for contractors tackling demanding daily workloads.

Product Specifications

Specification sheet (German)

Specification sheet (English)

Operator manual (Mongolian)

Operator manual (Croatian)

Operator manual (Czech)

Operator manual (Danish)

Operator manual (Estonian)

Operator manual (Finnish)

Operator manual (French)

Operator manual (German)

Operator manual (Hungarian)

Operator manual (Italian)

Operator manual (Norwegian)

Operator manual (Portuguese)

Operator manual (Russian)

Operator manual (Slovak)

Operator manual (Spanish)

Operator manual (Swedish)

Operator manual (Bulgarian)

Operator manual (Dutch)

Operator manual (Icelandic)

Operator manual (English)

Min. working weight, flange mounted *1: 390 kg (860 lb)
Weight: 320 kg (710 lb)
Impact rate (frequency): 500 - 1,700 bpm
Operating pressure: 90 - 140 bar (1,305 - 2,030 psi)
Oil flow range: 40 - 120 l/min (11 - 32 gal/min)
Pressure relief setting *2: 140 - 190 (2,030 - 2,755 ) ¹⁾
Pressure relief max: 220 bar
Pressure in LP-circuit: 36 - 38 (520 - 550 )
Back pressure max: 20 bar (290 psi)
Input power: 28 kW (38 hp)
Tool diameter: 80 mm (3 in)
Pressure line connection (IN): BSPP-internal 3/4"
Return line connection (OUT): BSPP-internal 3/4"
Pressure line size, min. inner diameter: 19 mm (1 in)
Return line size, min. inner diameter: 19 mm (1 in)
Optimum oil temperature: 40 - 60 °C (104 - 140 °F)
Allowed oil temperature range: - 80 °C ( - 176 °F)
Optimum oil viscosity at operating temperature: 30 - 60 cSt
Allowed viscosity range: 20 - cSt
Skid steer, robot weight, optimum: 3 - 5 t (7,300 - 11,500 lb)
Skid steer, robot weight, range *3: 3 - 6 t (5,700 - 13,900 lb) ²⁾
Noise level, measured (2000/14/EC): 120.00 dB(A)
Noise level, guaranteed (2000/14/EC): 124.00 dB(A)
Miniexcavator, tractor backhoe weight, Optium: 5 - 8 t ( - lb)
Miniexcavator, tractor backhoe weight, Range *3: 4 - 10 t (9,500 - 20,900 lb)

Min. working weight, flange mounted *1: 390 kg (860 lb)
Weight: 320 kg (710 lb)
Impact rate (frequency): 500 - 1,700 bpm
Operating pressure: 90 - 140 bar (1,305 - 2,030 psi)
Oil flow range: 40 - 120 l/min (11 - 32 gal/min)
Pressure relief setting *2: 140 - 190 (2,030 - 2,755 ) ¹⁾
Pressure relief max: 220 bar
Pressure in LP-circuit: 36 - 38 (520 - 550 )
Back pressure max: 20 bar (290 psi)
Input power: 28 kW (38 hp)
Tool diameter: 80 mm (3 in)
Pressure line connection (IN): BSPP-internal 3/4"
Return line connection (OUT): BSPP-internal 3/4"
Pressure line size, min. inner diameter: 19 mm (1 in)
Return line size, min. inner diameter: 19 mm (1 in)
Optimum oil temperature: 40 - 60 °C (104 - 140 °F)
Allowed oil temperature range: - 80 °C ( - 176 °F)
Optimum oil viscosity at operating temperature: 30 - 60 cSt
Allowed viscosity range: 20 - cSt
Skid steer, robot weight, optimum: 3 - 5 t (7,300 - 11,500 lb)
Skid steer, robot weight, range *3: 3 - 6 t (5,700 - 13,900 lb) ²⁾
Noise level, measured (2000/14/EC): 120.00 dB(A)
Noise level, guaranteed (2000/14/EC): 124.00 dB(A)
Miniexcavator, tractor backhoe weight, Optium: 5 - 8 t ( - lb)
Miniexcavator, tractor backhoe weight, Range *3: 4 - 10 t (9,500 - 20,900 lb)

¹⁾ Minimum setting = actually measured operating pressure + 50 bar or 725 psi
²⁾ Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

¹⁾ Minimum setting = actually measured operating pressure + 50 bar or 725 psi
²⁾ Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Features & Applications

Features
- High pressure membrane accumulator
  Membrane-type accumulator eliminates Nitrogen leakages, ensuring constant maximum impact power and eliminating the need for recharging in field.
- Twin handed, smart
  A connecting block allows easy adaptation to different excavator setups. This twin handed design allows optimal mounting on both left and right handed carriers, prolonging the service life of the hose connections. Easy installation with hydraulic quick hitch mounting brackets.
- Tubular accumulator
  The leak-free tubular accumulator is filled with nitrogen and requires no maintenance or time-consuming recharging between maintenance intervals. With its large surface area and short hydraulic connections to the piston, it effectively reduces pressure fluctuations in the hydraulic system and ensures maximum piston acceleration and high impact frequency. This design provides 100% power at all times.
- Vibration and sound suppressed
  Less vibrations and at the same time significantly lower noise levels are achieved with this ultra-modern, low-wear design. This protects the operator, the carrier and relieves the environment. This extends your range of applications on narrow job sites and wherever noise protection is required.
- Flange mounting
  The Flange mounting design allows for the use of existing mounting plates, as well as carrier and application specific customization.
- CBE+ (Constant Blow Energy plus)
  The RAMMER CBE-System (CBE = Constant Blow Energy) with the active pressure control valve and the permanently filled tubular accumulator maintains the hydraulic pressure level to ensure that each impact delivers the maximum possible power. The RAMMER CBE system accepts a wide range of oil flows and high back pressures, allowing a wide range of carriers to be used. The "+" stands for safe and fast connection to the carrier.
- No tie rods
  A smart design without tie rods allows for ideal guidance of the piston and optimal alignment of the tool. Fast, safe and easy to maintain without the need for special tools.
- Single part tool bushing retained with shared tool pin
  The one-piece quick-change tool bushing inludes a thrust ring, the upper and the lower tool bushing into one component. This quick-change tool bushing can easily be replaced on site, making maintenance easier, faster and safer.
- Fast-change tool system
  Quick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change.
- RD3 incl. SAM (as standard)
  RD3 for SAM as standard. Online hour meter and location tracking in Google MapsTM. For further information, please contact your Rammer distributor.
Applications
- Primary demolition
  Demolition of standing buildings and structures.
- Trenching
  Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage
- Secondary demolition
  Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
- Cutting of asphalt or frozen ground

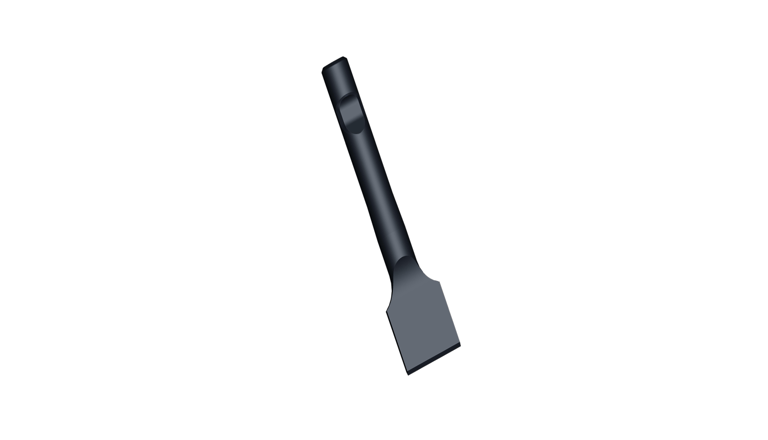

  The RAMMER "Spade tool" was specially developed for cutting of asphalt or frozen ground in road construction or infrastructure.
- Landscaping
  Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar.
- Ground Compacting

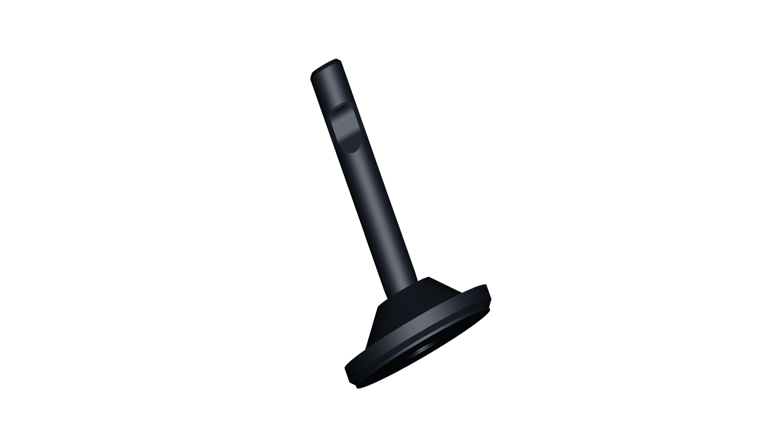

  With special compacting plate tool.
- Rental
  Rental includes most applications
