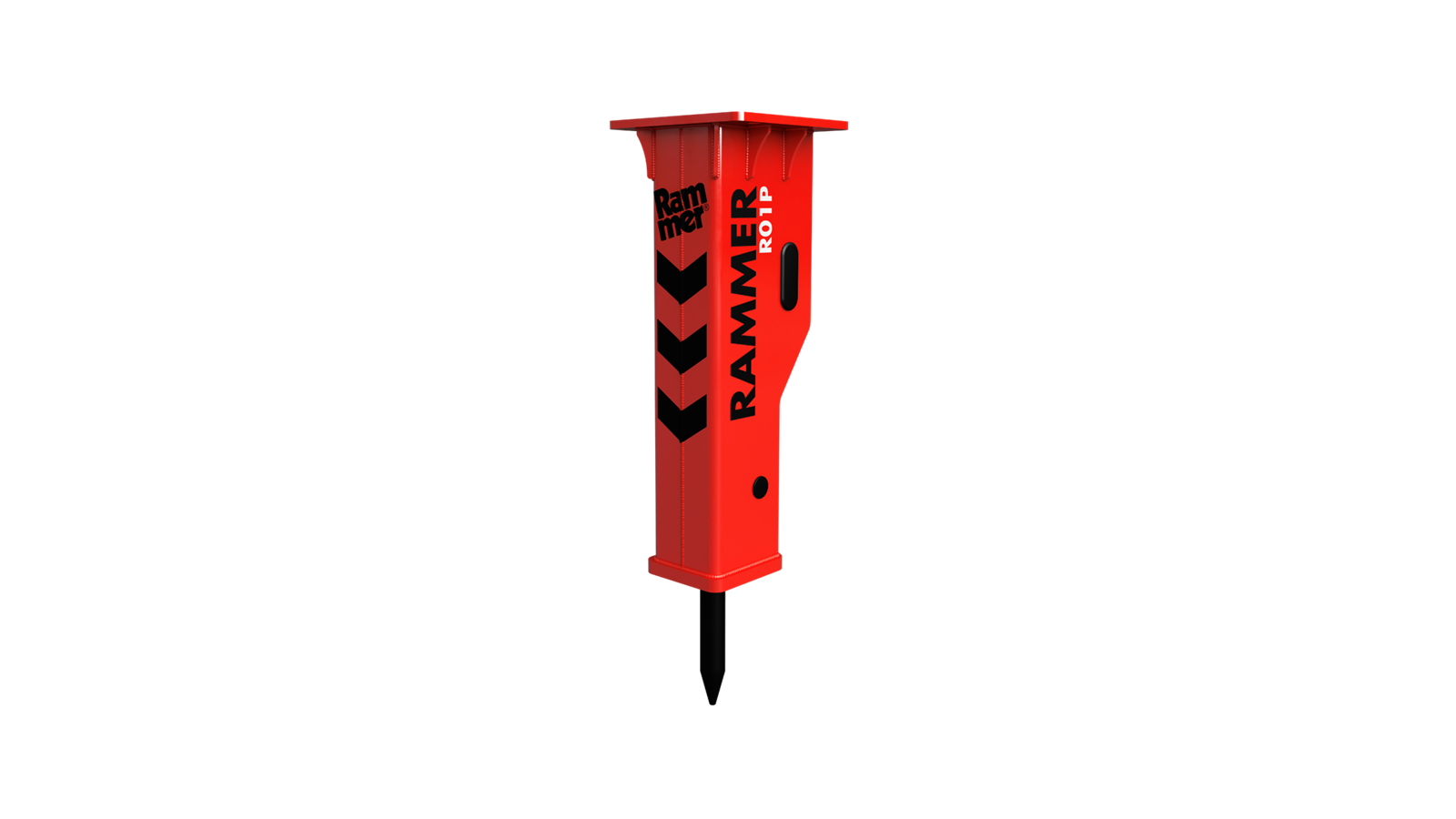

R01P

Applications

<ul class="pl-5 list-disc text-base"><li>Trenching</li><li>Secondary demolition</li><li>Recycling</li><li>Landscaping</li><li>Rental</li></ul>

Min. working weight, flange mounted  *1

95 kg (209 lb)

Oil flow range

15 - 25 l/min (4 - 7 gal/min)

Tool diameter

40 mm (2 in)

Skid steer, robot weight, range  *3

1 - 2 t (1,500 - 3,500 lb)

Carrier weight, range  *3

1 - 2 t (1,800 - 4,600 lb)

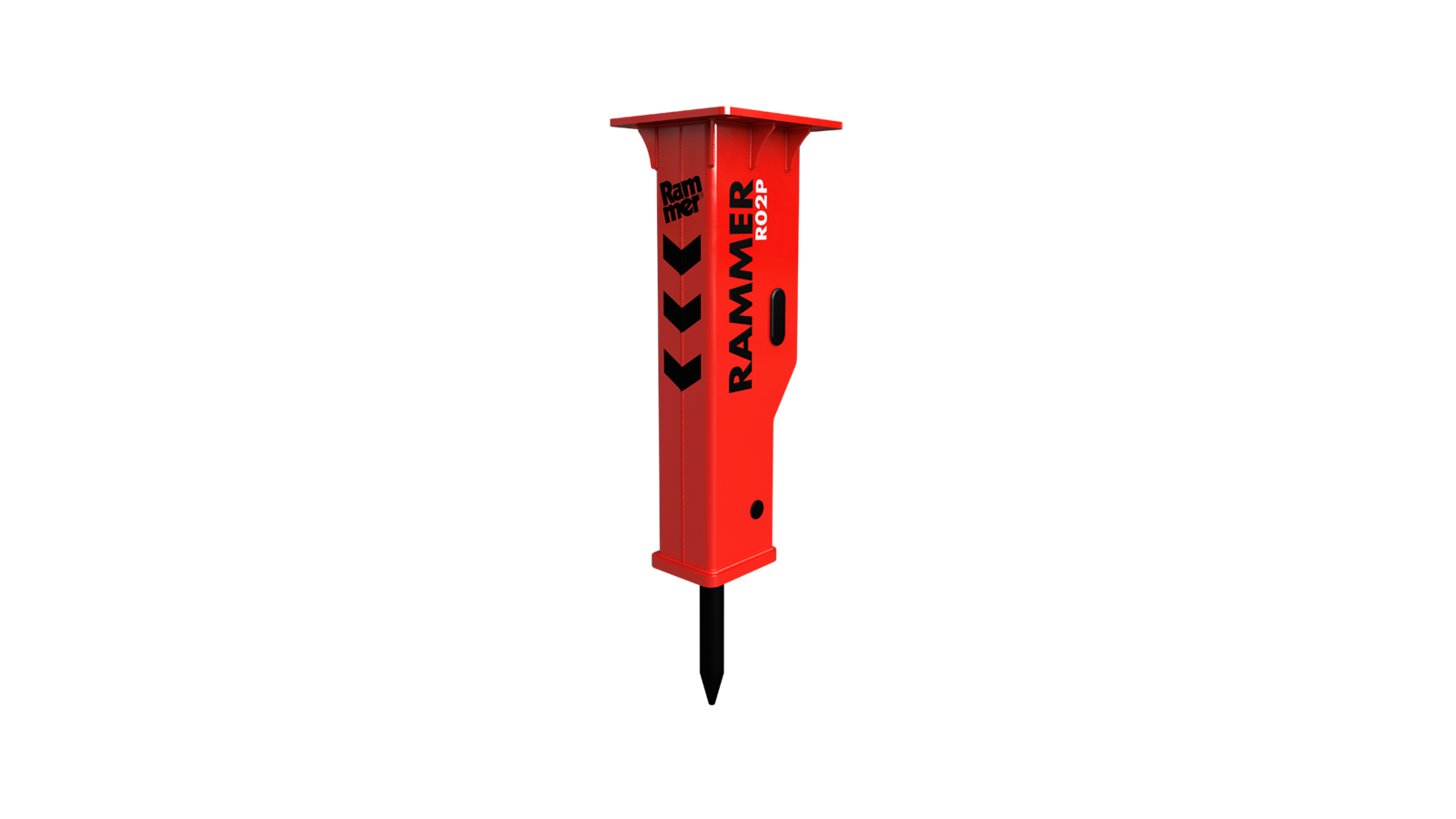

R02P

Applications

<ul class="pl-5 list-disc text-base"><li>Trenching</li><li>Secondary demolition</li><li>Recycling</li><li>Landscaping</li><li>Rental</li><li>Primary demolition</li></ul>

Min. working weight, flange mounted  *1

130 kg (290 lb)

Oil flow range

15 - 40 l/min (4 - 11 gal/min)

Tool diameter

46 mm (2 in)

Skid steer, robot weight, range  *3

1 - 2 t (2,600 - 4,850 lb)

Carrier weight, range  *3

1 - 3 t (2,900 - 7,275 lb)

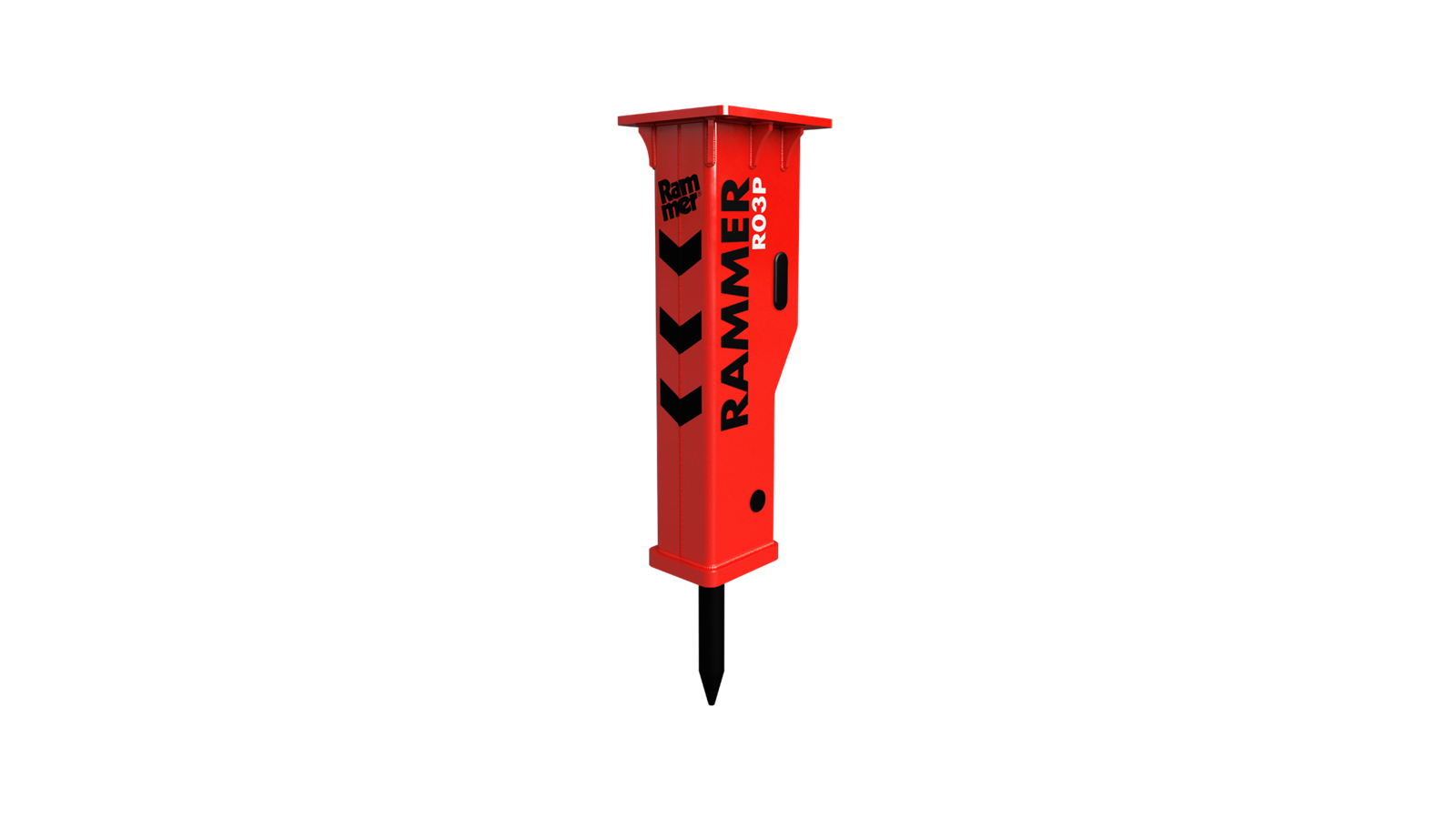

R03P

Applications

<ul class="pl-5 list-disc text-base"><li>Trenching</li><li>Secondary demolition</li><li>Recycling</li><li>Landscaping</li><li>Rental</li><li>Primary demolition</li></ul>

Min. working weight, flange mounted  *1

180 kg (400 lb)

Oil flow range

25 - 50 l/min (7 - 13 gal/min)

Tool diameter

53 mm (2 in)

Skid steer, robot weight, range  *3

1 - 3 t (3,100 - 7,055 lb)

Carrier weight, range  *3

2 - 4 t (4,400 - 9,700 lb)

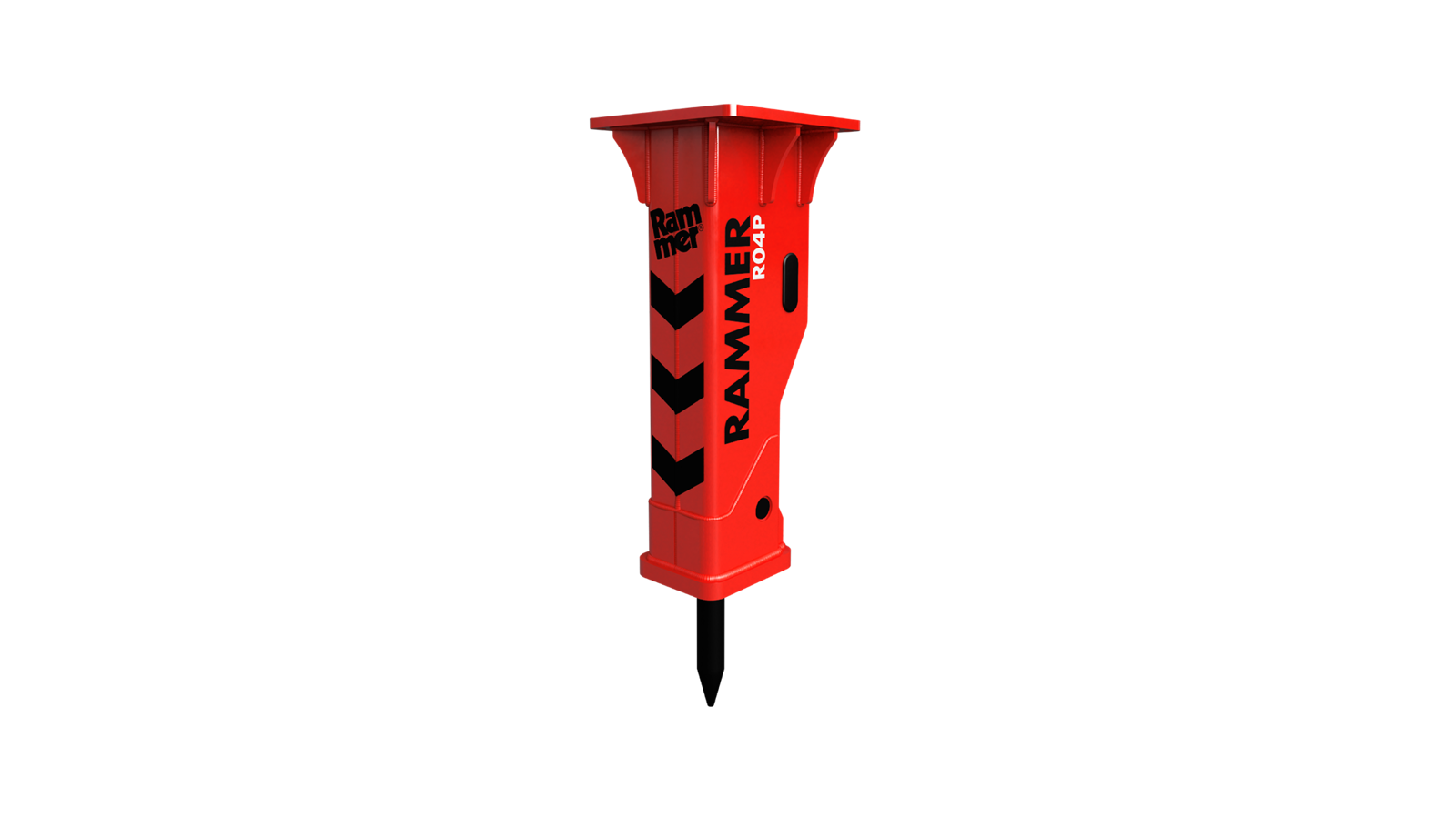

R04P

Applications

<ul class="pl-5 list-disc text-base"><li>Trenching</li><li>Secondary demolition</li><li>Landscaping</li><li>Rental</li><li>Primary demolition</li></ul>

Min. working weight, flange mounted  *1

285 kg (630 lb)

Oil flow range

30 - 60 l/min (8 - 16 gal/min)

Tool diameter

60 mm (2 in)

Skid steer, robot weight, range  *3

2 - 4 t (4,400 - 8,157 lb)

Carrier weight, range  *3

3 - 6 t (6,600 - 13,228 lb)

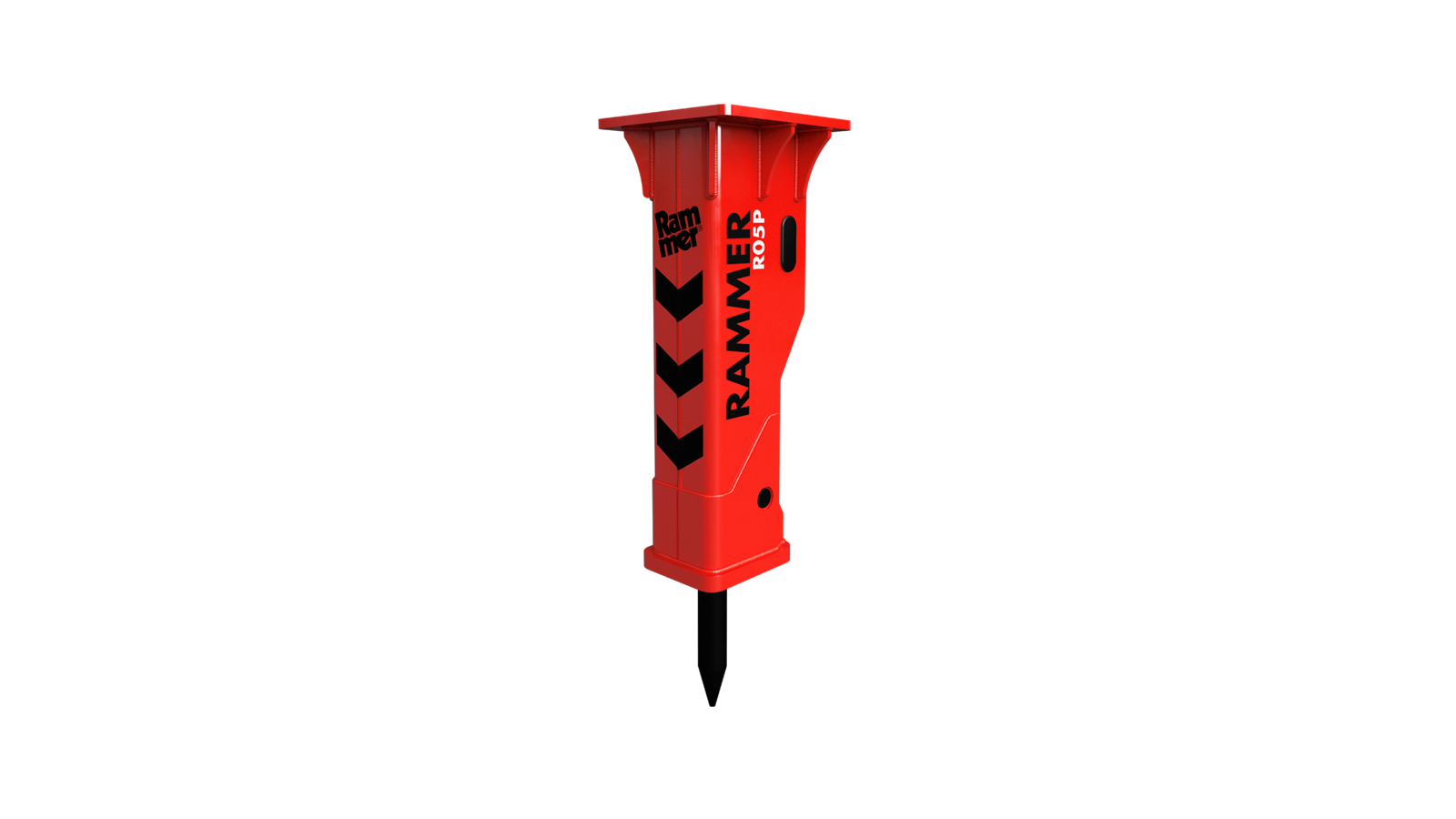

R05P

Applications

<ul class="pl-5 list-disc text-base"><li>Trenching</li><li>Secondary demolition</li><li>Landscaping</li><li>Rental</li><li>Primary demolition</li></ul>

Min. working weight, flange mounted  *1

325 kg (720 lb)

Oil flow range

35 - 70 l/min (9 - 19 gal/min)

Tool diameter

68 mm (3 in)

Skid steer, robot weight, range  *3

3 - 5 t (6,600 - 11,464 lb)

Carrier weight, range  *3

4 - 8 t (8,800 - 16,535 lb)

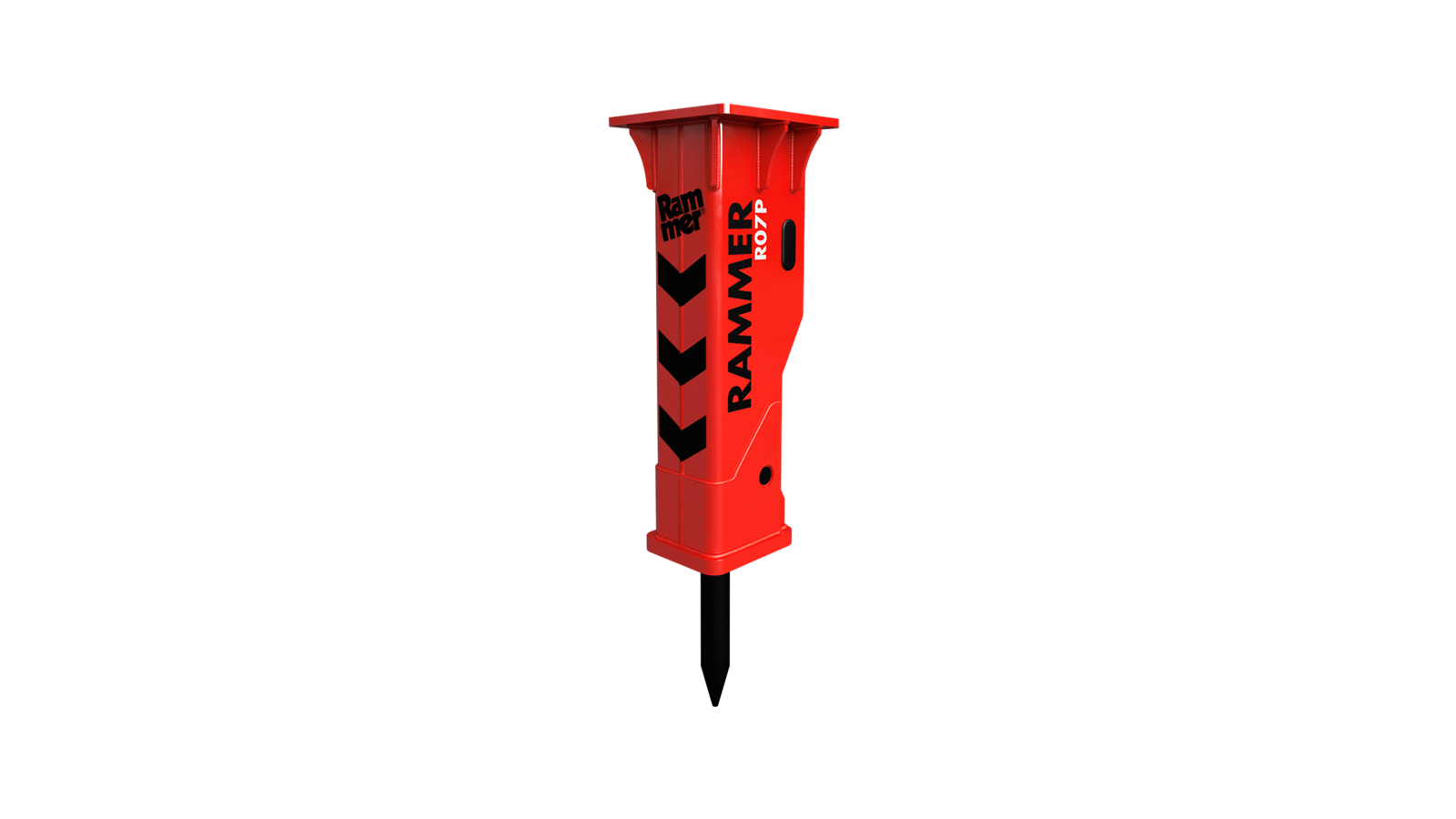

R07P

Applications

<ul class="pl-5 list-disc text-base"><li>Trenching</li><li>Secondary demolition</li><li>Landscaping</li><li>Rental</li><li>Primary demolition</li></ul>

Min. working weight, flange mounted  *1

400 kg (880 lb)

Oil flow range

45 - 90 l/min (12 - 24 gal/min)

Tool diameter

75 mm (3 in)

Skid steer, robot weight, range  *3

4 - 6 t (7,716 - 13,228 lb)

Carrier weight, range  *3

5 - 9 t (11,000 - 19,842 lb)

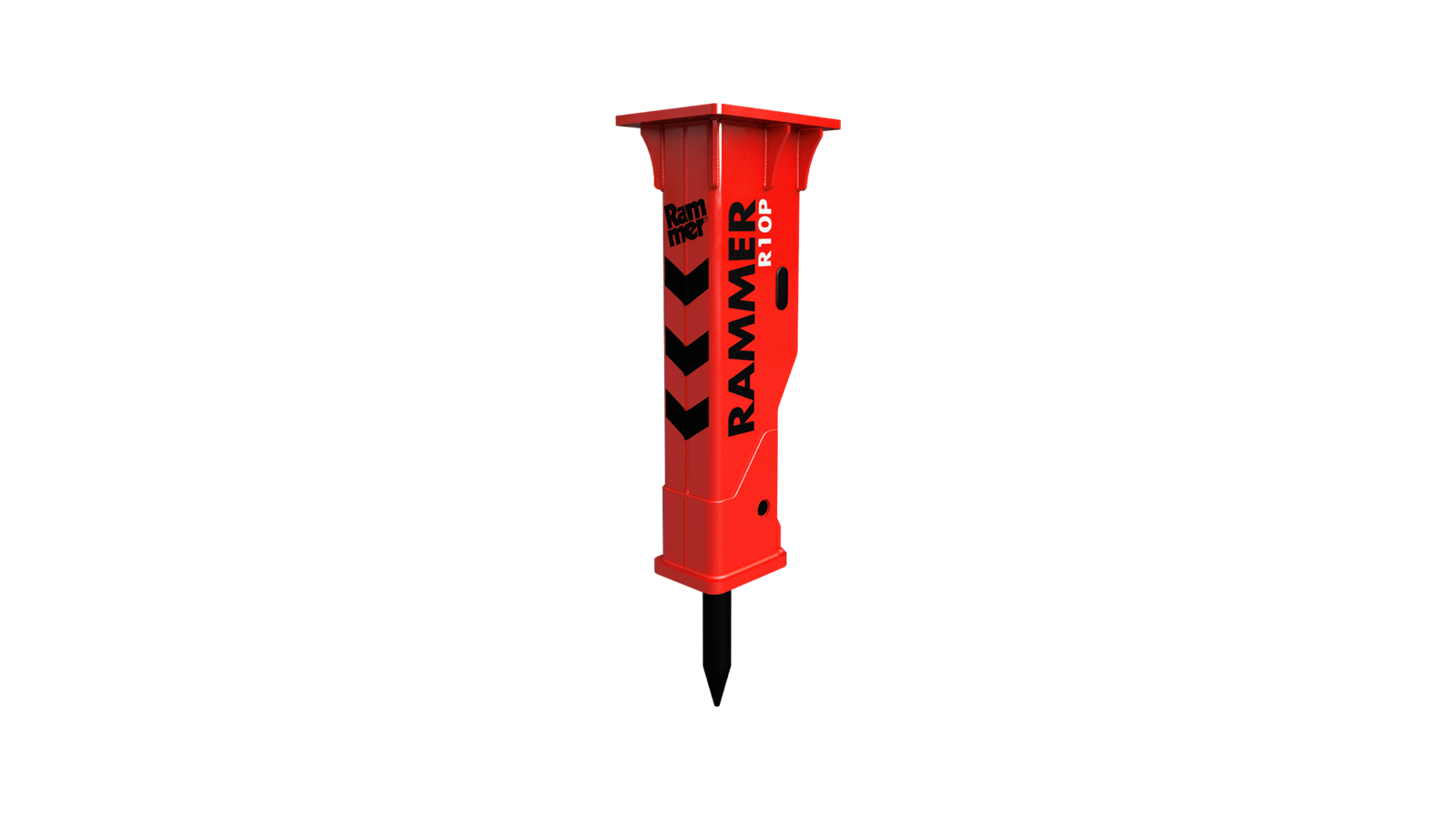

R10P

Applications

<ul class="pl-5 list-disc text-base"><li>Trenching</li><li>Secondary demolition</li><li>Landscaping</li><li>Rental</li><li>Primary demolition</li></ul>

Min. working weight, flange mounted  *1

530 kg (1,170 lb)

Oil flow range

50 - 95 l/min (13 - 25 gal/min)

Tool diameter

85 mm (3 in)

Skid steer, robot weight, range  *3

4 - 8 t (8,818 - 16,535 lb)

Carrier weight, range  *3

6 - 12 t (13,200 - 26,455 lb)

R12P

Applications

<ul class="pl-5 list-disc text-base"><li>Primary demolition</li><li>Trenching</li><li>Secondary demolition</li><li>Secondary breaking</li><li>Landscaping</li><li>Rental</li></ul>

Min. working weight, flange mounted  *1

830 kg (1,830 lb)

Oil flow range

60 - 100 l/min (16 - 26 gal/min)

Tool diameter

90 mm (4 in)

Carrier weight, range  *3

9 - 14 t (19,800 - 30,865 lb)

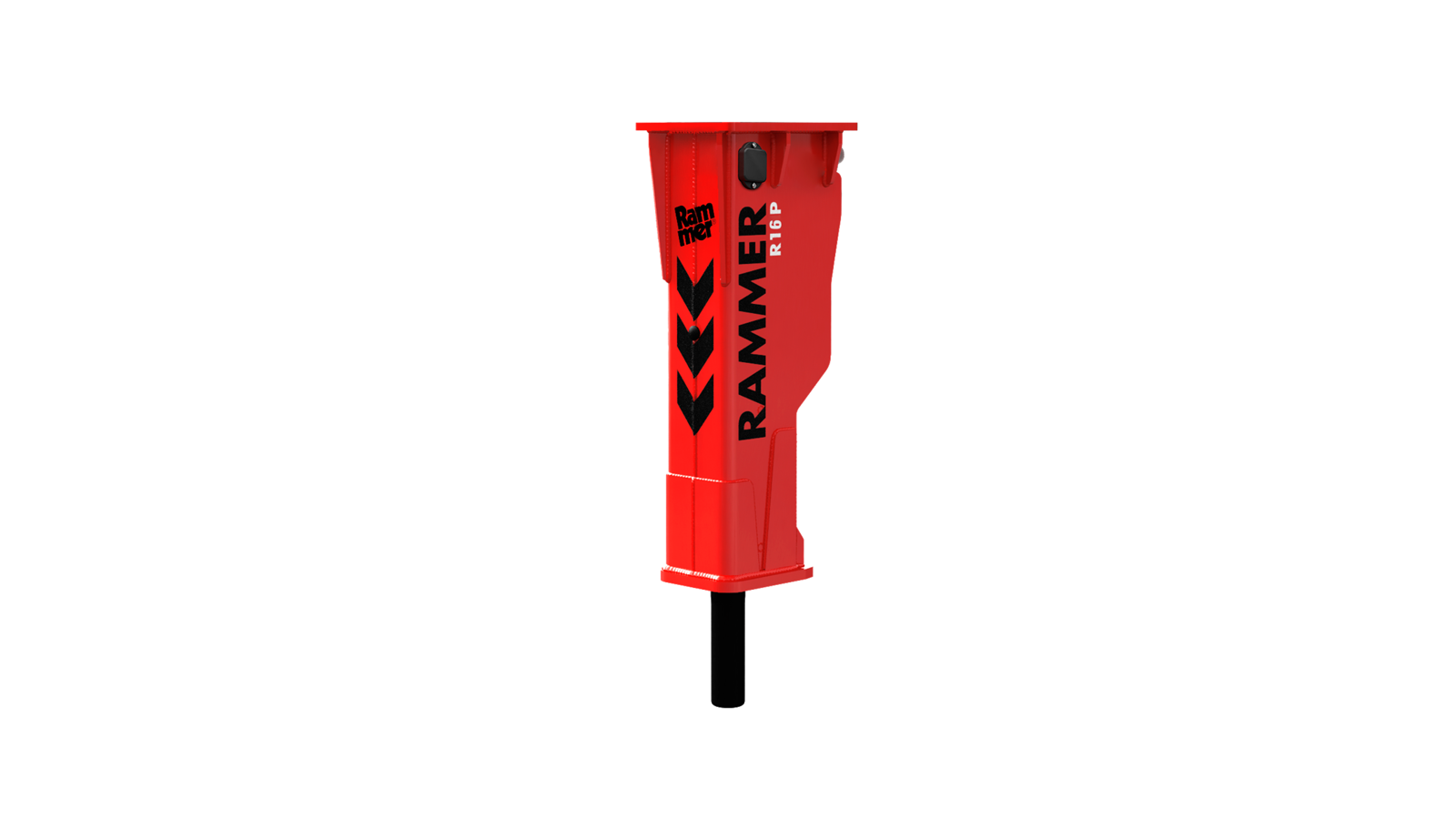

R16P

Applications

<ul class="pl-5 list-disc text-base"><li>Primary demolition</li><li>Trenching</li><li>Secondary demolition</li><li>Secondary breaking</li><li>Landscaping</li><li>Rental</li></ul>

Min. working weight, flange mounted  *1

1,120 kg (2,470 lb)

Oil flow range

90 - 120 l/min (24 - 32 gal/min)

Tool diameter

110 mm (4 in)

Carrier weight, range  *3

13 - 21 t (28,700 - 46,300 lb)

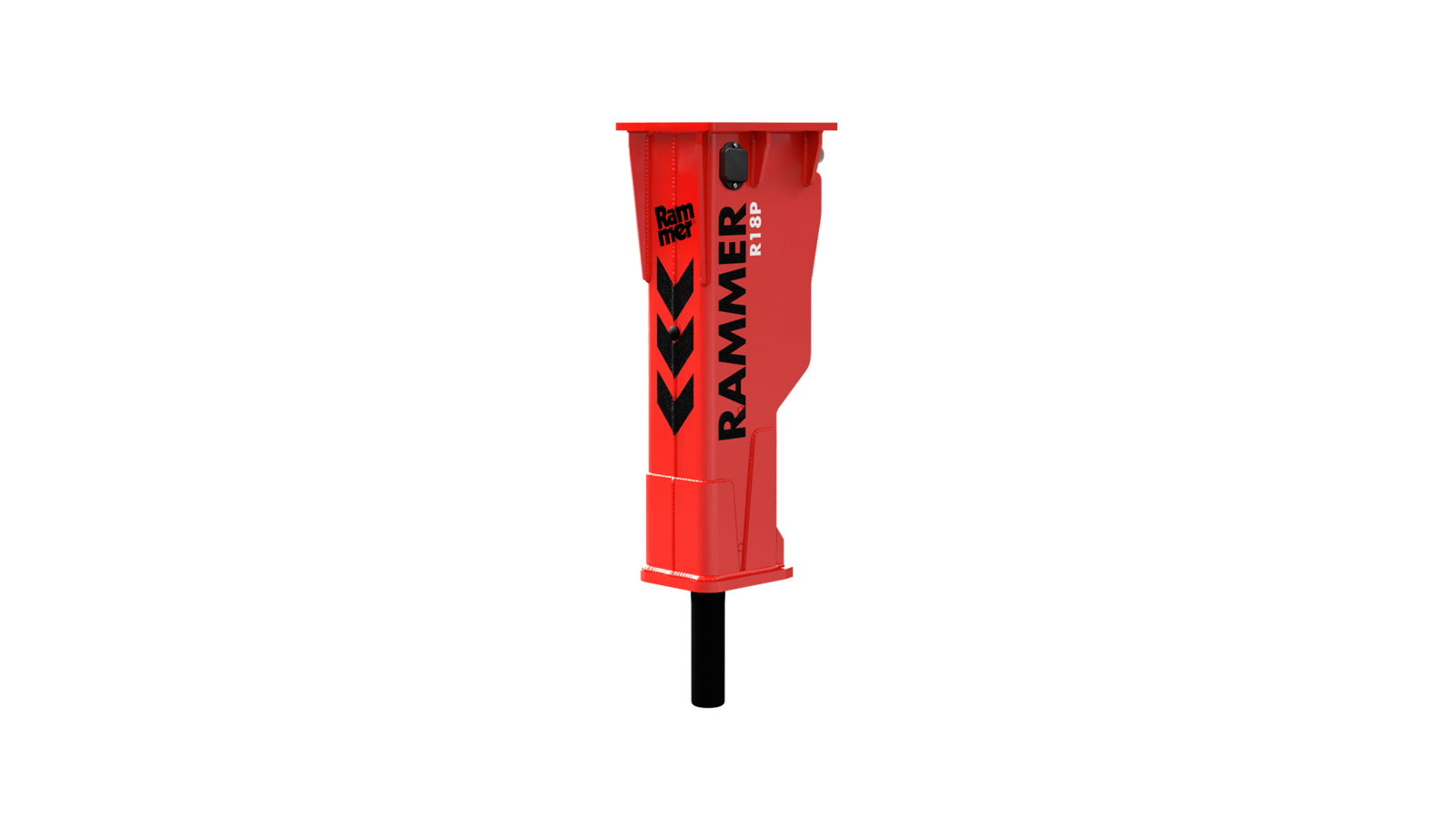

R18P

Applications

<ul class="pl-5 list-disc text-base"><li>Primary demolition</li><li>Trenching</li><li>Secondary demolition</li><li>Secondary breaking</li><li>Landscaping</li><li>Rental</li></ul>

Min. working weight, flange mounted  *1

1,350 kg (2,976 lb)

Oil flow range

100 - 140 l/min (26 - 37 gal/min)

Tool diameter

120 mm (5 in)

Carrier weight, range  *3

15 - 23 t (33,100 - 50,700 lb)

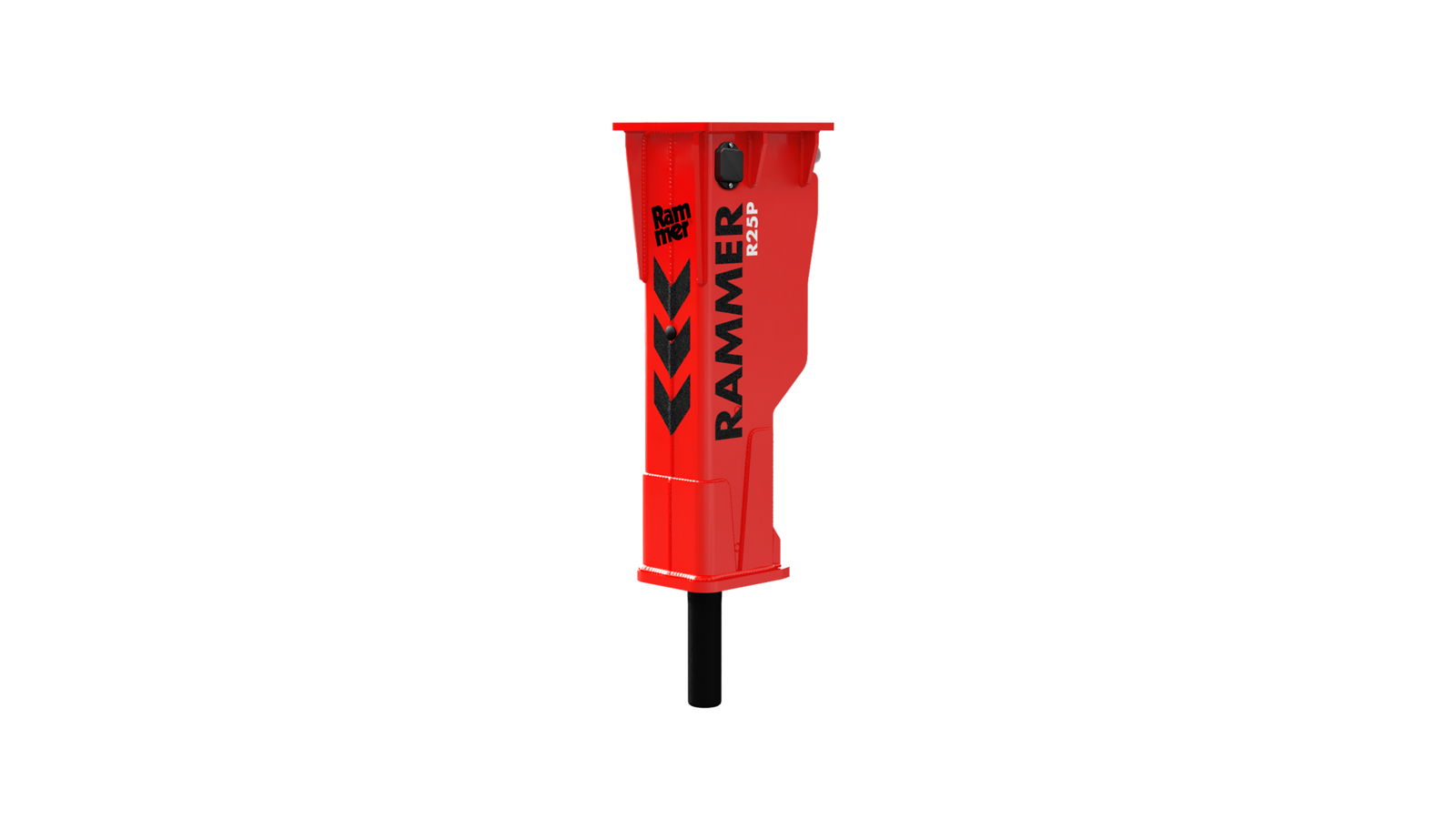

R25P

Applications

<ul class="pl-5 list-disc text-base"><li>Primary demolition</li><li>Secondary demolition</li><li>Recycling</li><li>Primary breaking</li><li>Secondary breaking</li><li>Rental</li></ul>

Min. working weight, flange mounted  *1

1,740 kg (3,836 lb)

Oil flow range

130 - 170 l/min (34 - 45 gal/min)

Tool diameter

135 mm (5 in)

Carrier weight, range  *3

20 - 29 t (44,100 - 63,900 lb)

R35P

Applications

<ul class="pl-5 list-disc text-base"><li>Primary demolition</li><li>Secondary demolition</li><li>Recycling</li><li>Primary breaking</li><li>Secondary breaking</li><li>Rental</li></ul>

Min. working weight, flange mounted  *1

2,480 kg (5,467 lb)

Oil flow range

150 - 200 l/min (40 - 53 gal/min)

Tool diameter

150 mm (6 in)

Carrier weight, range  *3

27 - 40 t (59,500 - 88,200 lb)
