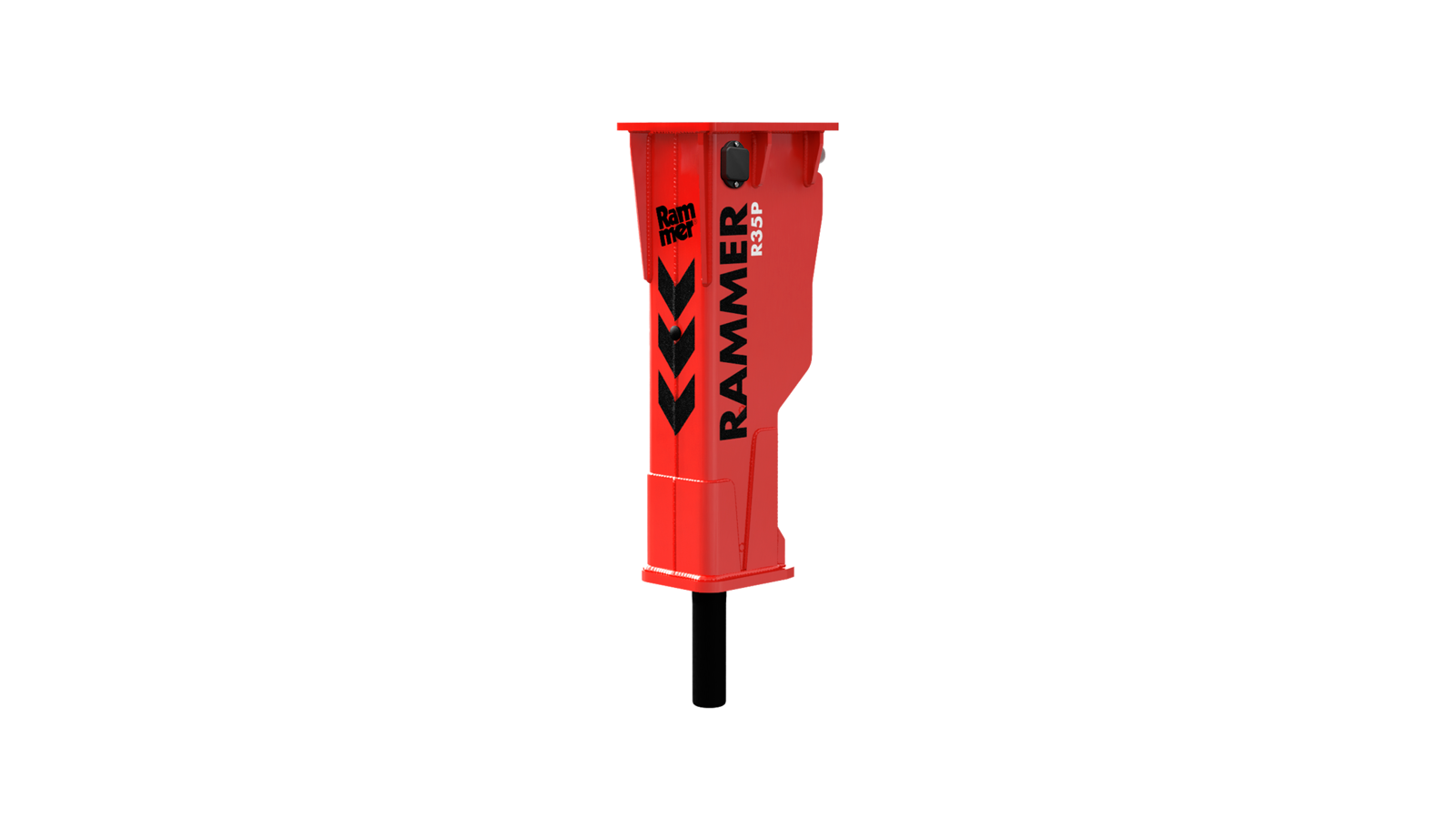

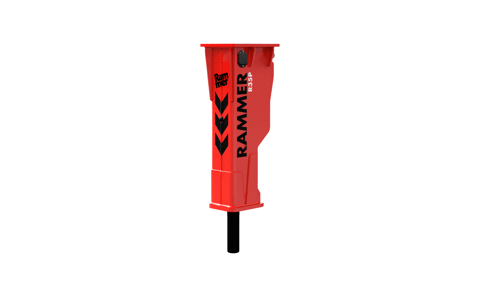

R35P
Request a quote
Large Range Performance
R35P
- Applications
-
- Primary demolition
- Secondary demolition
- Recycling
- Primary breaking
- Secondary breaking
- Rental
- Min. working weight, flange mounted *1
- 2,480 kg (5,467 lb)
- Tool diameter
- 150 mm (6 in)
The Rammer R35P is your daily partner for a wide range of breaking duties for carriers between 27-40 tons.
The 2,320 kg hammer has been designed with proven Rammer features and standards.The Rammer R35P Performance Line hammer incorporates the latest evolution in long proven breaking technology. The profitable R35P offers more than just excellent power-to-weight ratio, it offers the quality reassurance that only a true Rammer hammer can.
Product Specifications
Downloads
- Min. working weight, flange mounted *1
- 2,480 kg (5,467 lb) 1)
- Weight
- 2,060 kg (4,541 lb)
- Impact rate (frequency)
- 400 - 700 bpm
- Operating pressure
- 160.00 - 180.00 bar (2,320.00 - 2,610.00 psi)
- Oil flow range
- 150 - 200 l/min (40 - 53 gal/min)
- Min. working weight, flange mounted *1
- 2,480 kg (5,467 lb) 1)
- Weight
- 2,060 kg (4,541 lb)
- Impact rate (frequency)
- 400 - 700 bpm
- Operating pressure
- 160.00 - 180.00 bar (2,320.00 - 2,610.00 psi)
- Oil flow range
- 150 - 200 l/min (40 - 53 gal/min)
- Pressure relief setting *2
- 210 bar (3,045 psi) 2)
- Pressure relief max
- 230 bar (3,335 psi)
- Back head pressure
- 10 - 15 bar (145 - 220 psi)
- Back pressure max
- 10 bar (145 psi)
- Input power
- 60 kW (80 hp)
- Tool diameter
- 150 mm (6 in)
- Pressure line connection (IN)
- SAE 6000 psi 1 1/4
- Return line connection (OUT)
- SAE 6000 psi 1 1/4
- Pressure line size, min. inner diameter
- 26 mm (1 in)
- Return line size, min. inner diameter
- 32 mm (1 in)
- Optimum oil temperature
- 40 - 60 °C (104 - 140 °F)
- Allowed oil temperature range
- - 80 °C ( - 176 °F)
- Optimum oil viscosity at operating temperature
- 30 - 60 °C
- Allowed viscosity range
- 20 - 1,000
- Carrier weight, range *3
- 27 - 40 t (59,500 - 88,200 lb) 3)
- Noise level, measured (2000/14/EC)
- 118
- Noise level, guaranteed (2000/14/EC)
- 122
-
1) Includes average mounting bracket and standard wear parts
-
2) Minimum setting = actually measured operating pressure + 50 bar or 725 psi
-
3) Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
Features & Applications
-
Features
- Twin handed
The twin handed design allows optimal mounting on both left and right handed carriers, prolonging the service life of the hose connections. Easy installation for hydraulic quick hitch mounting brackets. - Vibration and sound suppressed
Less vibrations and at the same time significantly lower noise levels are achieved with this ultra-modern, low-wear design. This protects the operator, the carrier and relieves the environment. This extends your range of applications on narrow job sites and wherever noise protection is required. - Flange mounting
The Flange mounting design allows for the use of existing mounting plates, as well as carrier and application specific customization. - Stone claws on housing
Stone claws are ideal wear parts for material handling, especially useful in boulder breaking and in concrete demolition. - Idle blow protector
The Idle Blow Protection (IBP) ensures the hammer cannot be operated until pressure is placed on tool. This eliminates tie rod stress, reduces oil overheating and protects against premature failures. - Fast-change tool system
Quick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change. - RAMLUBE II
The RAMLUBE II is a state-of-the-art, convenient and automatic lubrication system for RAMMER hydraulic hammers, which significantly extends the service life of wearing parts. The RAMLUBE II is mounted on your hammer housing and is a self-venting impulse lubrication system. The grease volume of the RAMLUBE II can be externally adjusted. We recommend to use our original Rammer tool greases, which are developed for hammer applications. There are available three different greases: original Rammer Tool Grease for standard applications, Rammer Meissel Paste for special applications and Artic Tool Grease for cold climate conditions. - RD3 incl. SAM (optional)
RD3 for SAM optional for factory installation. Please consult your distributor for proper version. Online hour meter and location tracking in Google MapsTM - RD3 incl. SAM (retrofit)
RD3 device for SAM service available for retrofit installation. Please consult your distributor for proper version. Online hour meter and location tracking in Google MapsTM - Original RAMMER tools
All our experience reflects the unique quality and reliability of RAMMER original tools. You are advised to choose the right RAMMER tool for every application. This will increase your production and reduce your costs. - Piston type accumulator
The nitrogen piston accumulator is a safe and durable design, thanks to the use of the latest sealing technologies, . Fail-safe operation, high impact energy and simple and fast service help to improve your operating results. - Excellent power-to-weight ratio
RAMMER sets the standard in the industry with these outstanding values in the power-to-weight ratio. The impact force has been increased and at the same time the operating weight has been optimized.
- Twin handed
-
Applications
- Primary demolition
Demolition of standing buildings and structures. - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes - Primary breaking
Hammer fitted to an excavator working directly in a bench to breaks away rock which can then be removed by truck. This is most commonly used where blasting is not allowed. - Secondary breaking
When blasted rock is too big for the feeder or crusher, secondary breaking is needed to get the boulders down to size. The type of rock dictates the effectiveness of the process, with brittle rock giving the best performance. - Rental
Rental includes most applications
- Primary demolition

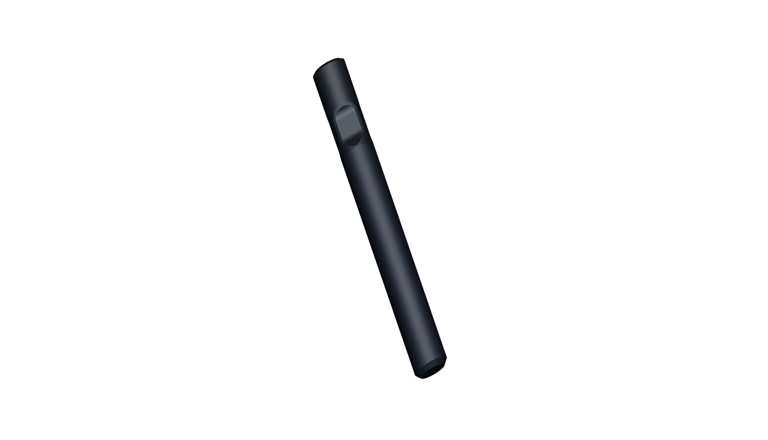

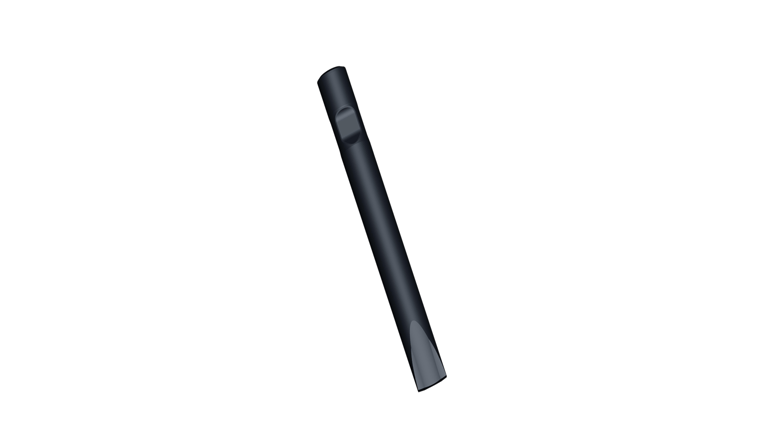

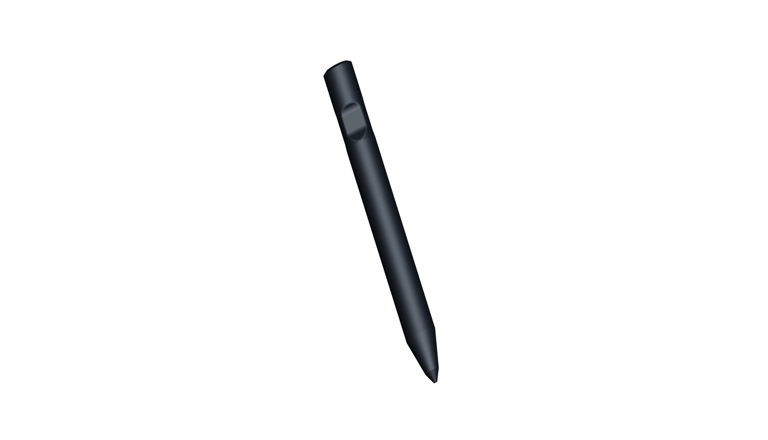

Tools
Parts
Tool Grease
ArcticTool Grease cartridge for Ramlube II (500g)
Tool Grease
Special Tool Grease cartridge for Ramlube II (500g)
Tool Grease
BIO Tool Grease cartridge for Ramlube II (500g)
Tool Grease
Meissel paste Grease cartridge for Ramlube II (500g)
Tool Grease
Special Tool Grease cartridge for Ramlube II Compact (250g)
