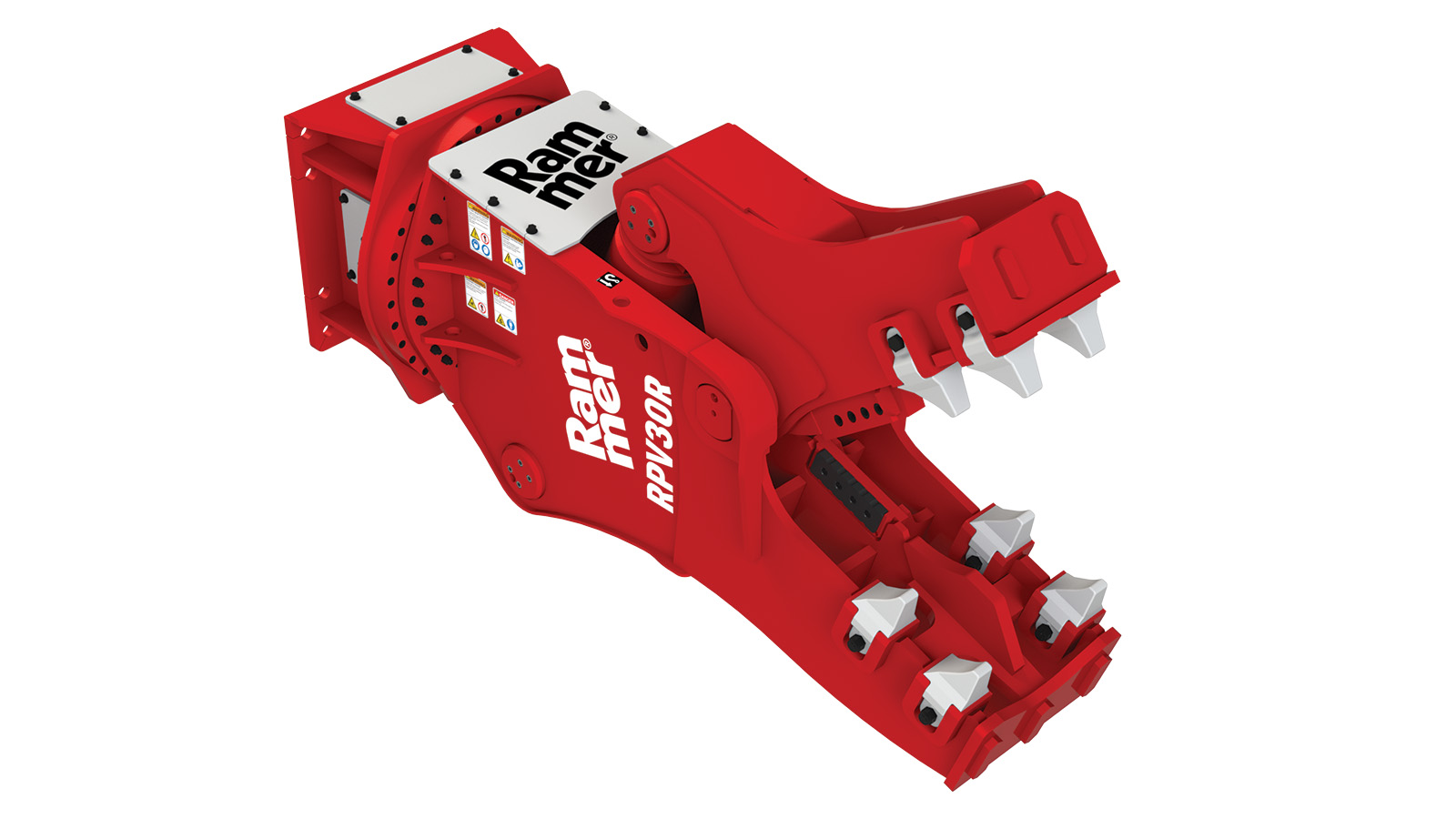

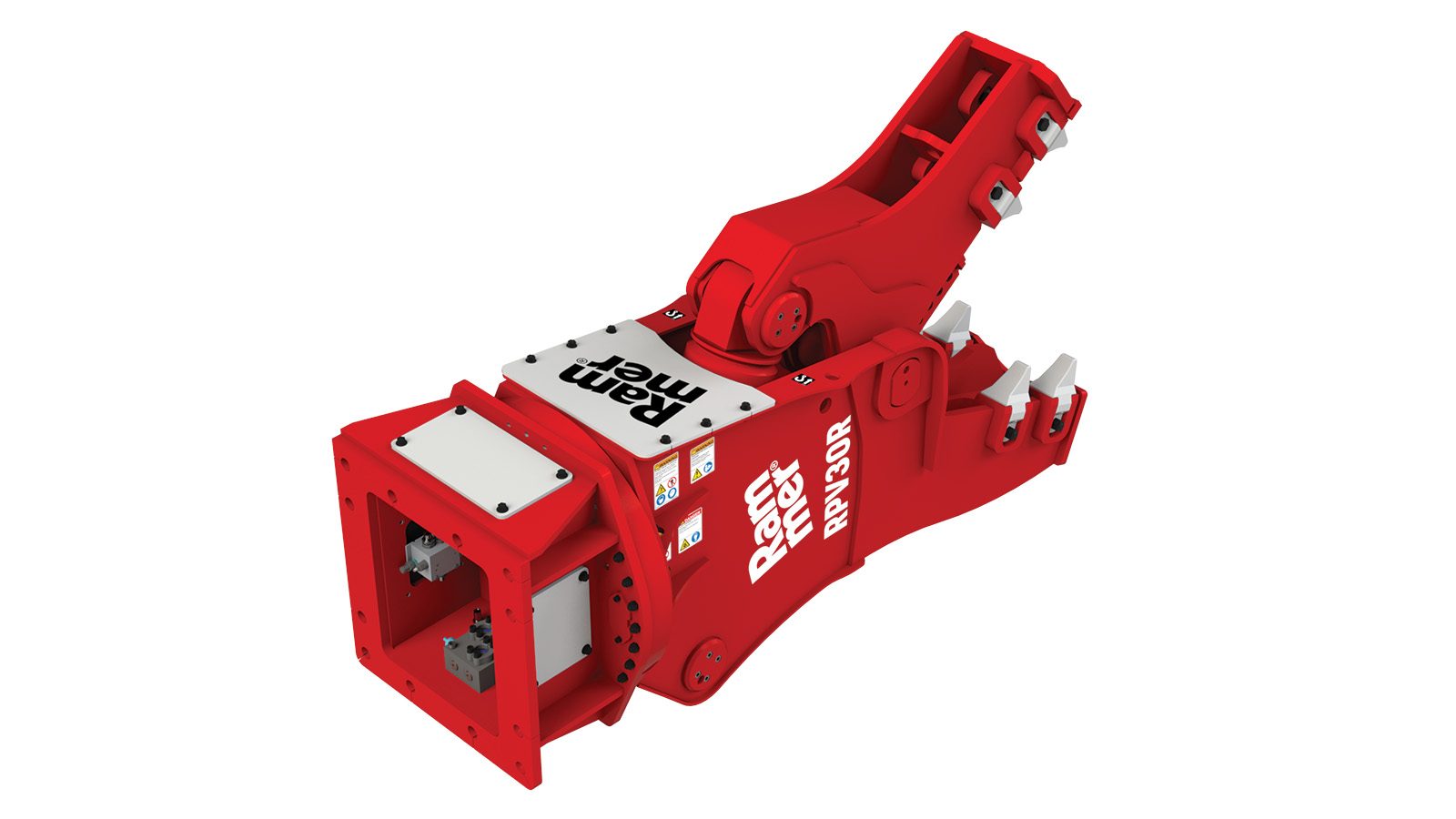

RPV30R

Min. working weight, flange mounted *1: 2,800 t (6,173 lb)
Carrier weight, range *2: 25 - 32 t (55,000 - 70,500 lb)

}

Versatile rotating pulverizer for mid-size carriers

Designed for 25–32 ton (55,000–70,500 lb) excavators, the RPV30R provides dependable performance across a wide range of demolition applications. Its 880 mm (34.6 in) jaw opening and robust construction support high-volume material processing with excellent operator control.

Product Specifications

Min. working weight, flange mounted *1: 2,800 t (6,173 lb)
Weight: 2,510 t (5,534 lb)
Height: 2,400 mm (95 in)
Max. jaw opening: 880 mm (35 in)
Jaw width: 530 mm (21 in)
Operating pressure: 340 bar (4,931 psi)
Oil flow range: 250 - 300 l/min (66 - 79 gal/min)
Rotation: 360 °
Oil flow for hydraulic rotation: 15.00 bar (4.00 psi)
Carrier weight, range *2: 25 - 32 t (55,000 - 70,500 lb)
Max Pressure for Hydraulic Rotation: 120 bar (1,740 psi)

Features & Applications

Features
- Hardox steel construction
  Heavy-duty hardox steel construction ensures exceptional resistance to abrasion and impact in primary and secondary demolition applications.
- Hydraulic rotation
  Provides smooth, accurate positioning for efficient material processing and improved operator control.
- Single inverted cylinder design
  The protected inverted cylinder increases reliability and minimizes exposure to debris and damage.
- Four-edge blades
  Designed for extended wear life, blades can be rotated to maximize usability and reduce downtime.
- Interchangeable high-penetration teeth
  Teeth deliver aggressive concrete breakage and can be easily replaced to maintain peak performance.
- Rotation control valve
  Enables precise, controlled movements for improved handling and reduced machine stress.
- Pressure relief valve
  Protects the hydraulic circuit from pressure spikes, extending component life and system reliability.
- Hardened pins and bushings
  Reinforced wear points ensure durability under continuous high-load operation.
- Regenerative valve
  Faster cycle times increase productivity and efficiency (RPV23R–RPV110R models).
- Double hydraulic motors
  Provides consistent rotation power and torque under demanding loads (RPV23R–RPV110R models).
Applications
- Pulverizing
  Separating rebar from concrete Preparation of material for crusher or landfill
- Primary demolition
  Demolition of standing buildings and structures.
- Secondary demolition
  Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
- Recycling
  Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
