RPV38S
Request a quote
Static Pulverizers
RPV38S
- Min. working weight
- 3,080 kg (6,790 lb)

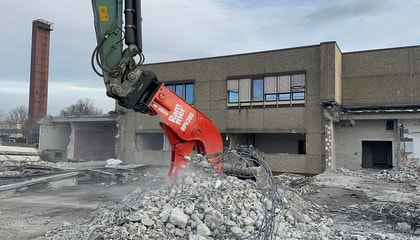

The RPV38S is ideal attachment for secondary demolition
For contractors stepping into larger demolition projects, the RPV38S matches perfectly with 30–45 ton excavators (66,100–99,200 lbs). With a 41 in (1,040 mm) jaw opening and weighing 3,100 kg (6,834 lbs), it’s built to process substantial concrete volumes efficiently. High oil flow capacity supports fast, productive crushing cycles.
Product Specifications
- Applications
-
Pulverizing / Secondary demolition / Recycling
- Min. working weight
- 3,080 kg (6,790 lb)
- Weight
- 2,800 kg (6,173 lb)
- Height
- 2,660 mm (106 in)
- Max. jaw opening
- 1,040 mm (43 in)
- Applications
-
Pulverizing / Secondary demolition / Recycling
- Min. working weight
- 3,080 kg (6,790 lb)
- Weight
- 2,800 kg (6,173 lb)
- Height
- 2,660 mm (106 in)
- Max. jaw opening
- 1,040 mm (43 in)
- Jaw width
- 560 mm (22 in)
- Max. operating pressure
- 340 bar (4,931 psi)
- Oil flow range
- 280 - 330 l/min (73 - 87 gal/min)
- Carrier weight, range *1
- 30 - 45 (66,100 - 99,200 )
- Features
-
Hardened pins and bushings
Features & Applications
-
Features
- Speed valve
Shorter working cycles to increase productivity - Hydraulic cylinder shielding
The cylinders are fully protected throughout the working cycle. Increasing durability and extending service intervals. - Grated jaw design
The fixed jaw allows crushed material to pass through increasing productivity - Manufactured from HB400 steel
Highly resistant material to work on concrete. - Field replaceable symmetrical cutter blades
Field replaceable and adjustable symmetrical cutter blades minimize downtime and significantly increase the working life of wear parts - Field replaceable pulverizing plate
Minimizing downtime as there is no need for welding/rebuilding Three different designs for different pulverizing applications. Please contact your dealer for advise on proper application. - Field replaceable loading teeth
A wearpart for the loading and sorting of material. Functionality and replaceability like an bucket tooth. - Hardened pins and bushings
Hardened parts are more wear resistant, extending their working life and lowering owning and operating costs
- Speed valve
-
Applications
- Pulverizing
Separating rebar from concrete Preparation of material for crusher or landfill - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
- Pulverizing
