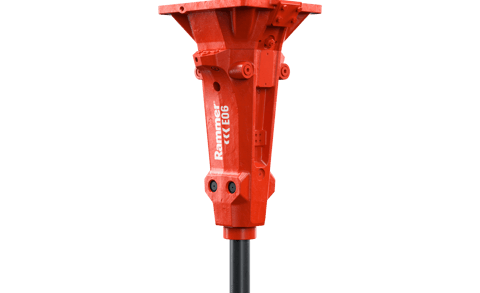

E06
Compact Range
E06
- Applications
-
- Primary demolition
- Trenching
- Secondary demolition
- Recycling
- Cutting of asphalt or frozen ground
- Landscaping
- Ground Compacting
- Underwater breaking
- Min. working weight, flange mounted
- 260 kg (573 lb)
- Tool diameter
- 70 mm (3 in)
}
The new generation of Rammer Compact Range delivers improved productivity while reducing machine stress and fuel consumption, combining higher performance, broader application coverage and lower operating costs in one unified compact solution.
Built to deliver exceptional performance without compromising efficiency, the Rammer E06 offers an outstanding power-to-weight ratio that maximizes productivity while reducing carrier stress and fuel consumption. Its advanced design features, including Constant Blow Energy (CBE) technology, Idle Blow Protection (IBP), and a robust unified body structure, help lower operating costs and improve reliability in demanding applications. With simplified maintenance, a modular accessory system, hoseless auto-greaser, and fewer stock variants required, the E06 is engineered to keep equipment working longer and servicing faster—helping operators get more done with less downtime.
Product Specifications
Downloads
Technical specifications
| Min. working weight, flange mounted |
260
kg
(573 lb)
1)
|
|---|---|
| Impact rate (frequency) |
400 - 1,700
bpm
|
| Operating pressure |
110 - 150
bar
(1,450 - 2,175 psi)
|
| Oil flow range |
35 - 90
l/min
(9 - 23 gal/min)
|
| Back pressure max |
20
bar
(290 psi)
|
| Min. working weight, flange mounted |
260
kg
(573 lb)
1)
|
|---|---|
| Impact rate (frequency) |
400 - 1,700
bpm
|
| Operating pressure |
110 - 150
bar
(1,450 - 2,175 psi)
|
| Oil flow range |
35 - 90
l/min
(9 - 23 gal/min)
|
| Back pressure max |
20
bar
(290 psi)
|
| Input power |
23
kW
(30 hp)
|
| Tool diameter |
70
mm
(3 in)
|
| Miniexcavator weight, range |
3 - 8
t
(6,613 - 17,636 lb)
2)
|
Specifications are subject to change without notice (Monday, July 22, 2024)
-
1) Includes average mounting bracket and standard wear parts
-
2) Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
Features & Applications
-
Features
- Low pressure accumulator
This accumulator accelerates the piston at constant energy (CBE). - Flange mounting
The Flange mounting design allows for the use of existing mounting plates, as well as carrier and application specific customization. - CBE (Constant Blow Energy)
Optimum impact energy for every stroke, ensuring 100% constant power and productivity - Light weight
The light weight design allows the use of smaller carriers without compromising the stability of the carrier. - Idle blow protector
The Idle Blow Protection (IBP) ensures the hammer cannot be operated until pressure is placed on tool. This eliminates tie rod stress, reduces oil overheating and protects against premature failures. - No tie rods
A smart design without tie rods allows for ideal guidance of the piston and optimal alignment of the tool. Fast, safe and easy to maintain without the need for special tools. - Single part tool bushing retained with shared tool pin
The one-piece quick-change tool bushing inludes a thrust ring, the upper and the lower tool bushing into one component. This quick-change tool bushing can easily be replaced on site, making maintenance easier, faster and safer. - Fast-change tool system
Quick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change.
- Low pressure accumulator
-
Applications
- Primary demolition
Demolition of standing buildings and structures. - Trenching
Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes - Cutting of asphalt or frozen ground
The RAMMER "Spade tool" was specially developed for cutting of asphalt or frozen ground in road construction or infrastructure. - Landscaping
Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar. - Ground Compacting
With special compacting plate tool. - Underwater breaking
Underwater breaking, be it primary breaking and/or demolition is a specialized application, in which material is broken and removed by equipment which is partly or fully submerged.
- Primary demolition
E06 Features
