555E
Request a quote
Small Range Excellence
555E
- Applications
-
- Primary demolition
- Trenching
- Secondary demolition
- Cutting of asphalt or frozen ground
- Landscaping
- Ground Compacting
- Rental
- Min. working weight, flange mounted *1
- 275 kg (610 lb)
- Tool diameter
- 72 mm (3 in)

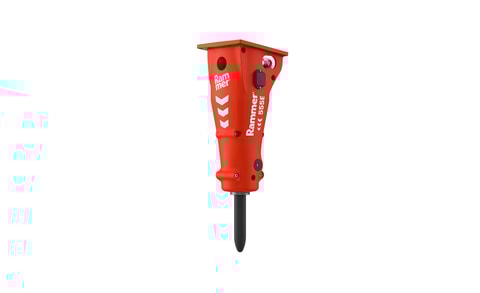

The Rammer 555E is designed for optimum carrier compatibility and installation flexibility in the 1.9 to 8 ton range.
The Rammer 555E is a versatile hammer for foundation work, road construction, utility trenching, and smaller-scale demolition. It delivers steady impact force and smooth control, making it easy to work close to structures and around buried services. Built with durable components and straightforward maintenance design, the 555E helps keep projects moving with minimal downtime — a solid fit for contractors doing varied breaking work across different job conditions.
Product Specifications
Downloads
- Min. working weight, flange mounted *1
- 275 kg (610 lb)
- Weight
- 228 kg (500 lb)
- Impact rate (frequency)
- 600 - 1,800 bpm
- Operating pressure
- 90 - 140 bar (1,305 - 2,030 psi)
- Oil flow range
- 35 - 90 l/min (9 - 24 gal/min)
- Min. working weight, flange mounted *1
- 275 kg (610 lb)
- Weight
- 228 kg (500 lb)
- Impact rate (frequency)
- 600 - 1,800 bpm
- Operating pressure
- 90 - 140 bar (1,305 - 2,030 psi)
- Oil flow range
- 35 - 90 l/min (9 - 24 gal/min)
- Pressure relief setting *2
- 140 - 200 (2,030 - 2,900 ) 1)
- Pressure relief max
- 220 bar
- Pressure in LP-circuit
- 36 - 38 (520 - 550 )
- Back pressure max
- 20 bar (290 psi)
- Input power
- 21 kW (28 hp)
- Tool diameter
- 72 mm (3 in)
- Pressure line connection (IN)
- BSPP-internal 3/4"
- Return line connection (OUT)
- BSPP-internal 3/4"
- Pressure line size, min. inner diameter
- 19 mm (1 in)
- Return line size, min. inner diameter
- 19 mm (1 in)
- Optimum oil temperature
- 40 - 60 °C (104 - 140 °F)
- Allowed oil temperature range
- - 80 °C ( - 176 °F)
- Optimum oil viscosity at operating temperature
- 30 - 60 cSt
- Allowed viscosity range
- 20 - cSt
- Skid steer, robot weight, optimum
- 2 - 4 t (5,300 - 8,600 lb)
- Skid steer, robot weight, range *3
- 2 - 5 t (4,200 - 11,700 lb) 2)
- Noise level, measured (2000/14/EC)
- 118 dB(A)
- Noise level, guaranteed (2000/14/EC)
- 122 dB(A)
- Miniexcavator, tractor backhoe weight, Optium
- 4 - 6 t ( - lb)
- Miniexcavator, tractor backhoe weight, Range *3
- 3 - 8 t (7,100 - 17,600 lb)
-
1) Minimum setting = actually measured operating pressure + 50 bar or 725 psi
-
2) Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
Features & Applications
-
Features
- High pressure membrane accumulator
Membrane-type accumulator eliminates Nitrogen leakages, ensuring constant maximum impact power and eliminating the need for recharging in field. - Twin handed, smart
A connecting block allows easy adaptation to different excavator setups. This twin handed design allows optimal mounting on both left and right handed carriers, prolonging the service life of the hose connections. Easy installation with hydraulic quick hitch mounting brackets. - Tubular accumulator
The leak-free tubular accumulator is filled with nitrogen and requires no maintenance or time-consuming recharging between maintenance intervals. With its large surface area and short hydraulic connections to the piston, it effectively reduces pressure fluctuations in the hydraulic system and ensures maximum piston acceleration and high impact frequency. This design provides 100% power at all times. - Vibration and sound suppressed
Less vibrations and at the same time significantly lower noise levels are achieved with this ultra-modern, low-wear design. This protects the operator, the carrier and relieves the environment. This extends your range of applications on narrow job sites and wherever noise protection is required. - Flange mounting
The Flange mounting design allows for the use of existing mounting plates, as well as carrier and application specific customization. - CBE+ (Constant Blow Energy plus)
The RAMMER CBE-System (CBE = Constant Blow Energy) with the active pressure control valve and the permanently filled tubular accumulator maintains the hydraulic pressure level to ensure that each impact delivers the maximum possible power. The RAMMER CBE system accepts a wide range of oil flows and high back pressures, allowing a wide range of carriers to be used. The "+" stands for safe and fast connection to the carrier. - No tie rods
A smart design without tie rods allows for ideal guidance of the piston and optimal alignment of the tool. Fast, safe and easy to maintain without the need for special tools. - Single part tool bushing retained with shared tool pin
The one-piece quick-change tool bushing inludes a thrust ring, the upper and the lower tool bushing into one component. This quick-change tool bushing can easily be replaced on site, making maintenance easier, faster and safer. - Fast-change tool system
Quick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change. - RD3 incl. SAM (as standard)
RD3 for SAM as standard. Online hour meter and location tracking in Google MapsTM. For further information, please contact your Rammer distributor.
- High pressure membrane accumulator
-
Applications
- Primary demolition
Demolition of standing buildings and structures. - Trenching
Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Cutting of asphalt or frozen ground

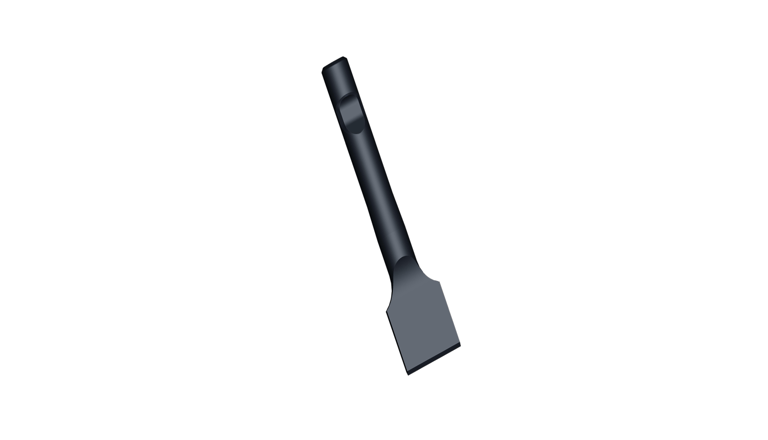

The RAMMER "Spade tool" was specially developed for cutting of asphalt or frozen ground in road construction or infrastructure. - Landscaping
Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar. - Ground Compacting
With special compacting plate tool. - Rental
Rental includes most applications
- Primary demolition

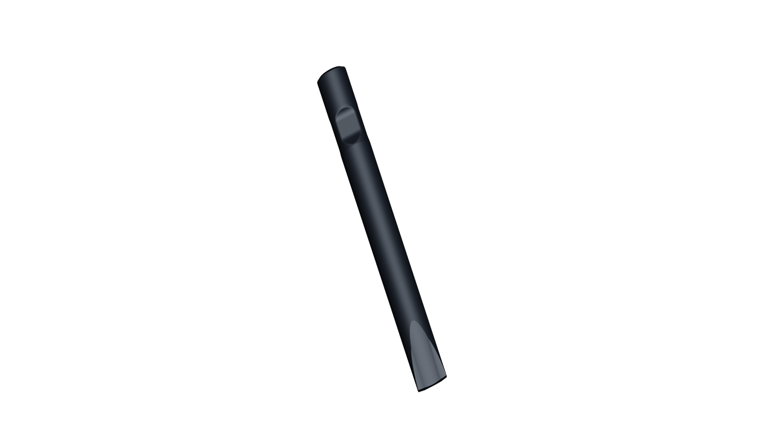

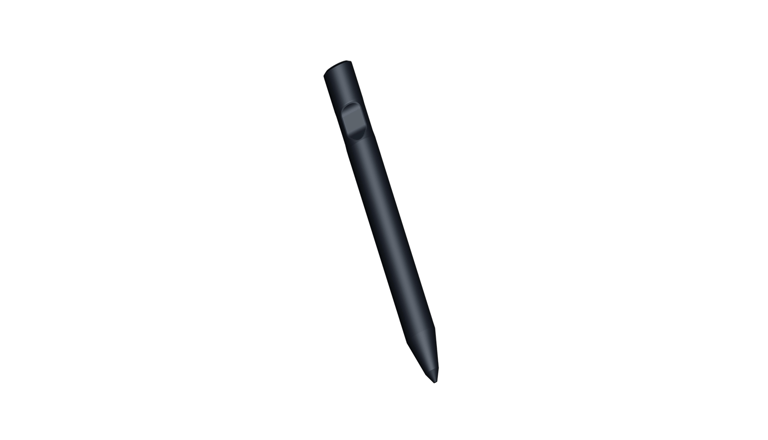

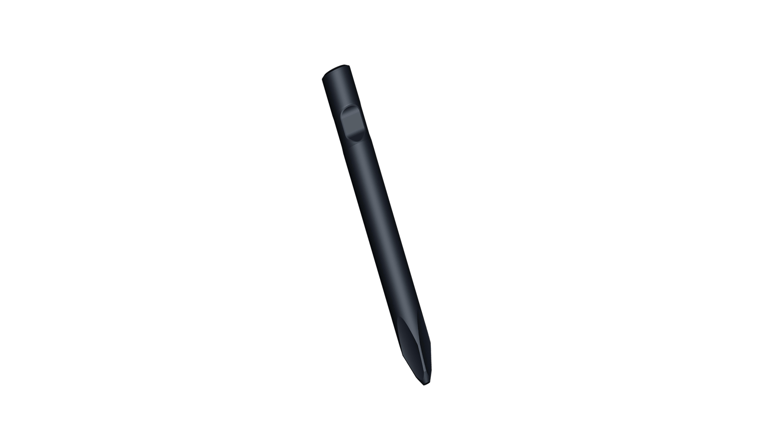

Tools
Parts
Tool Grease
ArcticTool Grease cartridge for Ramlube II (500g)
Tool Grease
Special Tool Grease cartridge for Ramlube II (500g)
Tool Grease
BIO Tool Grease cartridge for Ramlube II (500g)
Tool Grease
Meissel paste Grease cartridge for Ramlube II (500g)
Tool Grease
Special Tool Grease cartridge for Ramlube II Compact (250g)
